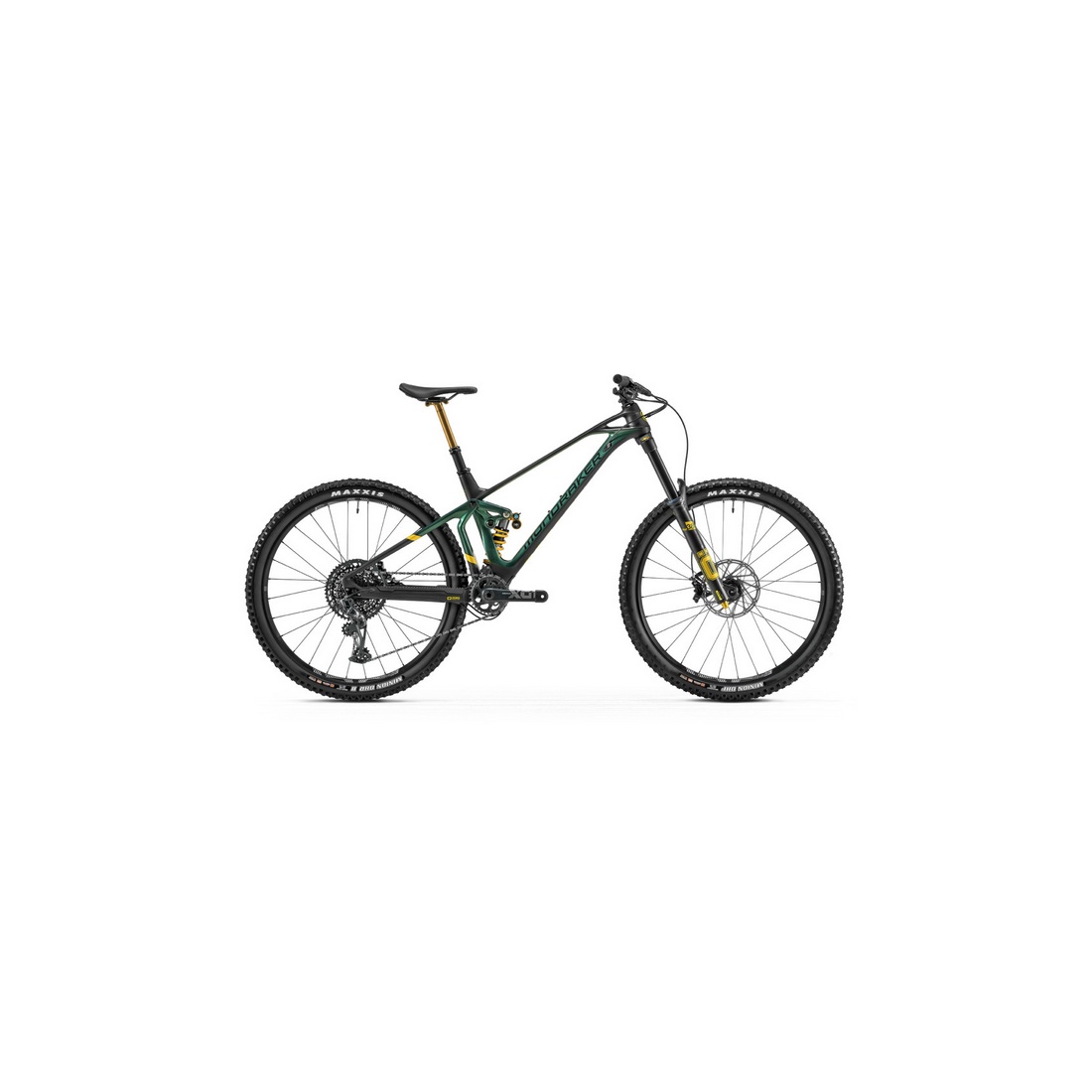

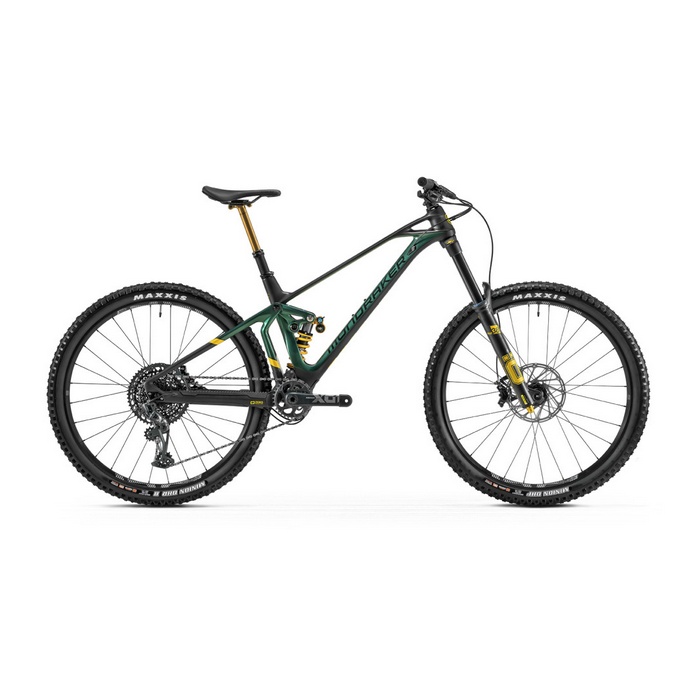

MONDRAKER SUPERFOXY CARBON RR 2022

Frame

SuperFoxy 29 Stealth Air full Carbon, Zero Suspension System, 160mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors. *Geometry kit included

Sizes

S: 380mm / M: 420mm / L: 470mm / XL: 510mm

Rear shock

Öhlins TTX 22M Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 22.2x10mm bottom bushings

Shock settings

C20 compression, R35 rebound

Fork

Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber

Headset

ONOFF Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º

Stem

ONOFF Krypton FG 30mm, CNC, 31.8mm barbore

Handlebar

ONOFF Sulfur 1.0 biconificado aleación 6061, altura: 20mm, ancho: 780mm, 9º backsweep, 5º upsweep, diámetro 31,8mm

Grips

ONOFF Diamond, 1lock-on, 135mm

Seatpost

Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M/L size: 418.3x150mm, XL size: 475.1x175mm

Saddle

SDG BEL-AIR 3.0, LPU foam, steel rails

Front brake

SRAM Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake

SRAM Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

SRAM Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

Rims

e*thirteen LG1 Plus Enduro, IW30 Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 28 spokes

Spokes

e*thirteen custom Hive triple-butted black alloy, alloy nipples, nipple washers

Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub

Front tire

Maxxis Assegai 29x2.5WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Rear tire

Maxxis Dissector 29x2.4WT, tubeless ready, 3C MAXX GRIP compound, DH casing, 60x2TPI, folding bead

Crankset

SRAM X01 Carbon Eagle, SuperBoost, DUB axle, Direct mount chain ring, S/M size: 170mm, L/XL size: 175mm

Rings

32T, CNC-machined alloy, X-SYNC 2

Bottom bracket

SRAM DUB BSA, sealed bearings, 73mm

Chain

SRAM GX Eagle, 12s, Powerlock

Rear derrailleur

SRAM X01 Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1

Shift levers

SRAM Trigger X01 Eagle, 12s, X-Actuation 1:1

Casette

SRAM XG-1275, 10-52T, 12s

Derailleur hanger

Mondraker M071

Others

*Geometry kit included: 0º headset cups and chainstay adaptor for 450mm CS length

Weight

14.3 kg
