EXTENSIONS PROFILE DESIGN SUPERSONIC ERGO 50C CARBON
Previous Next

EXTENSIONS PROFILE DESIGN SUPERSONIC ERGO 50C CARBON

PROFILE DESIGN

245,00 €

Color
Millésime

Reference :

EXTENSIONS PROFILE DESIGN SUPERSONIC ERGO 50C CARBON / TRIATHLON

More details

Quantity

Livraison 24/48H

Delivery 5/7 daysWe assure the delivery of order between 5 and 7 days after validation of your payment and order before 13:00.

Paiements sécurisés

Secure paymentsEither by bank card CIC (SSL), by Paypal, by bank transfer, in BITCOIN.

Service Client

Customer serviceA problem, a question about your order? Use our contact form. We will respond as soon as possible.

Satisfait ou remboursé

Satisfied or refundedThe product does not suit you and wish you a refund? You have 14 days from the reception of your order to ask us for its return and refund.

Características

  • Bracket: Supersonic
  • Clamp Diameter: 31.8mm (26.0 w/Shims)
  • Armrest: Ergo / 10mm Pads

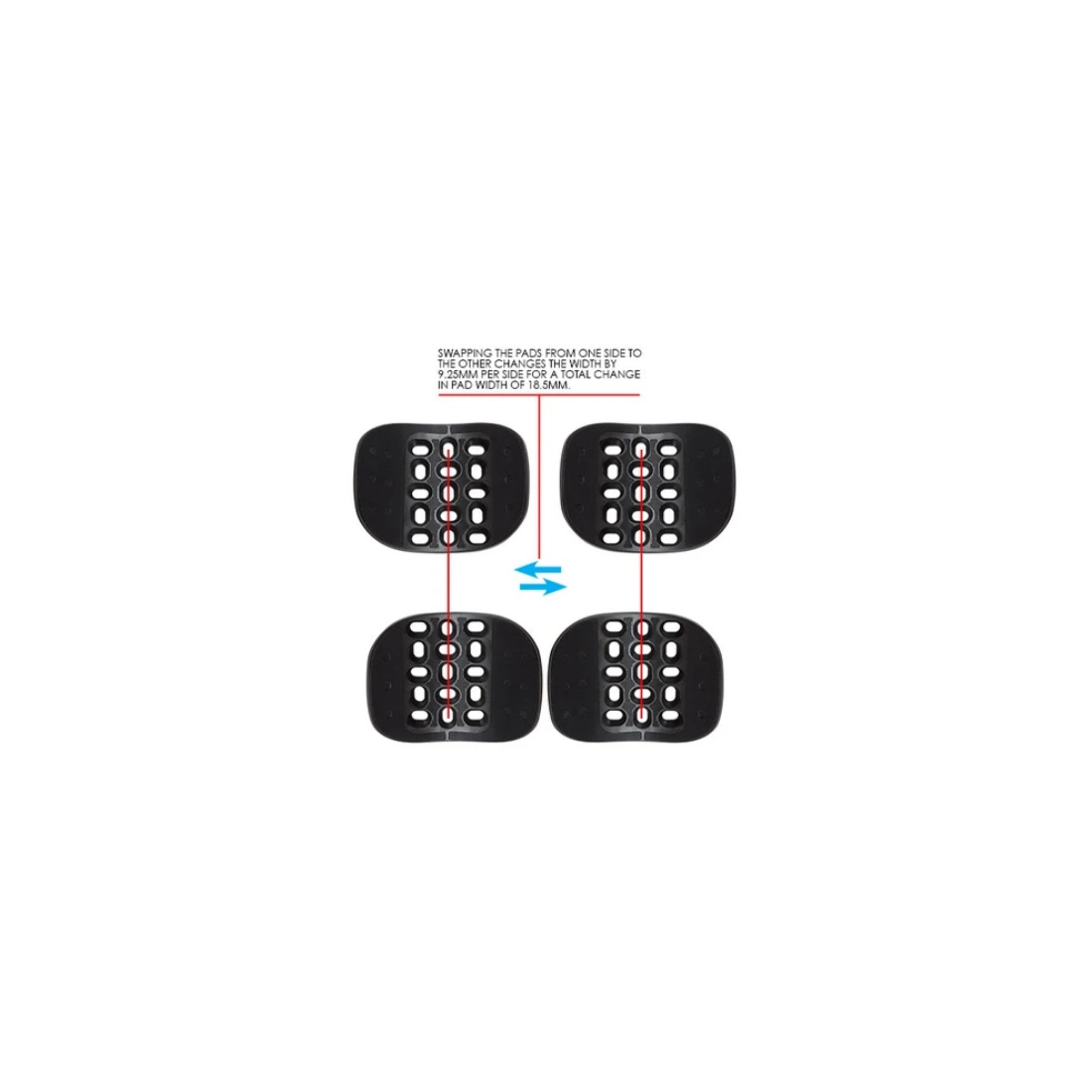

  • Armrest Width: 124mm to 290mm in 18.5mm steps (with Extensions at 100mm)

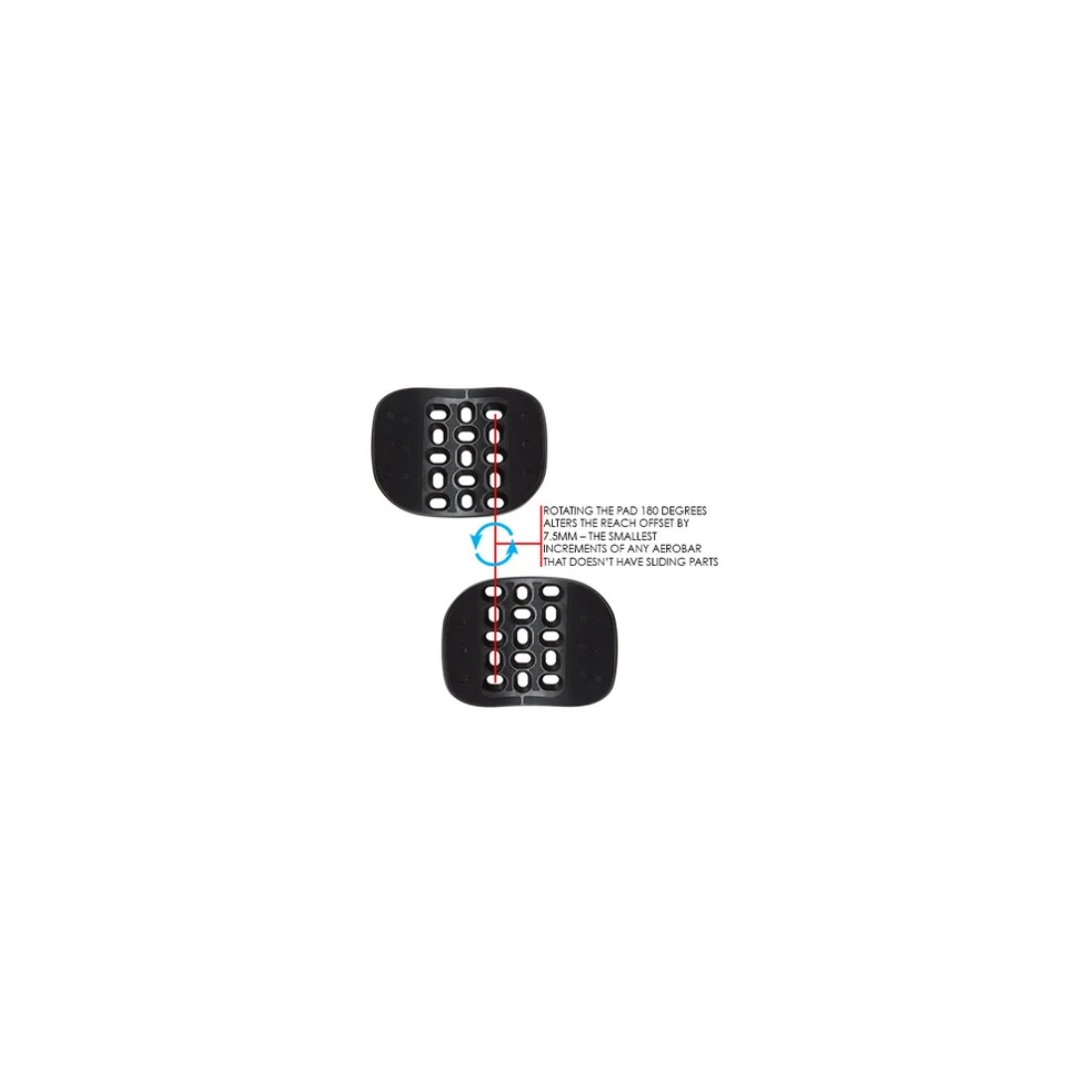

  • Armrest Offset: -85mm to -17.5mm in 7.5mm steps
  • Armrest Stack: The minimum is 58.5mm and the bracket is compatible with our existing risers which add up to 138.5mm stack with (70mm of spacers added)

Torque settings (all bolts are M6)

  • Bar Clamp: 6Nm
  • Extension Clamp: 5Nm
  • Armrest Bolts: 4.7Nm

Weight

  • Bracket: 266g
  • Armrest: 145g
  • Extensions: 268g
  • Total: 679g
