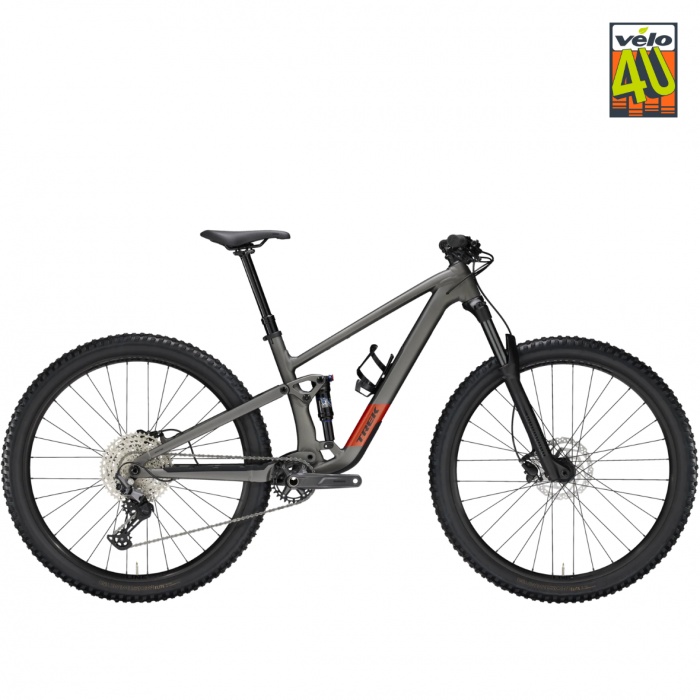

TREK TOP FUEL 5 2025

Frame:
Alpha Platinum Aluminum with internal storage, tapered head tube, guided internal cable routing, down tube protection, alloy rocker link, 4-position Mino Link, ABP, Boost148, 120 mm travel.

Fork:
RockShox Recon Silver RL, Solo Air, Motion Control damper with lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth thru-axle, 130 mm travel.

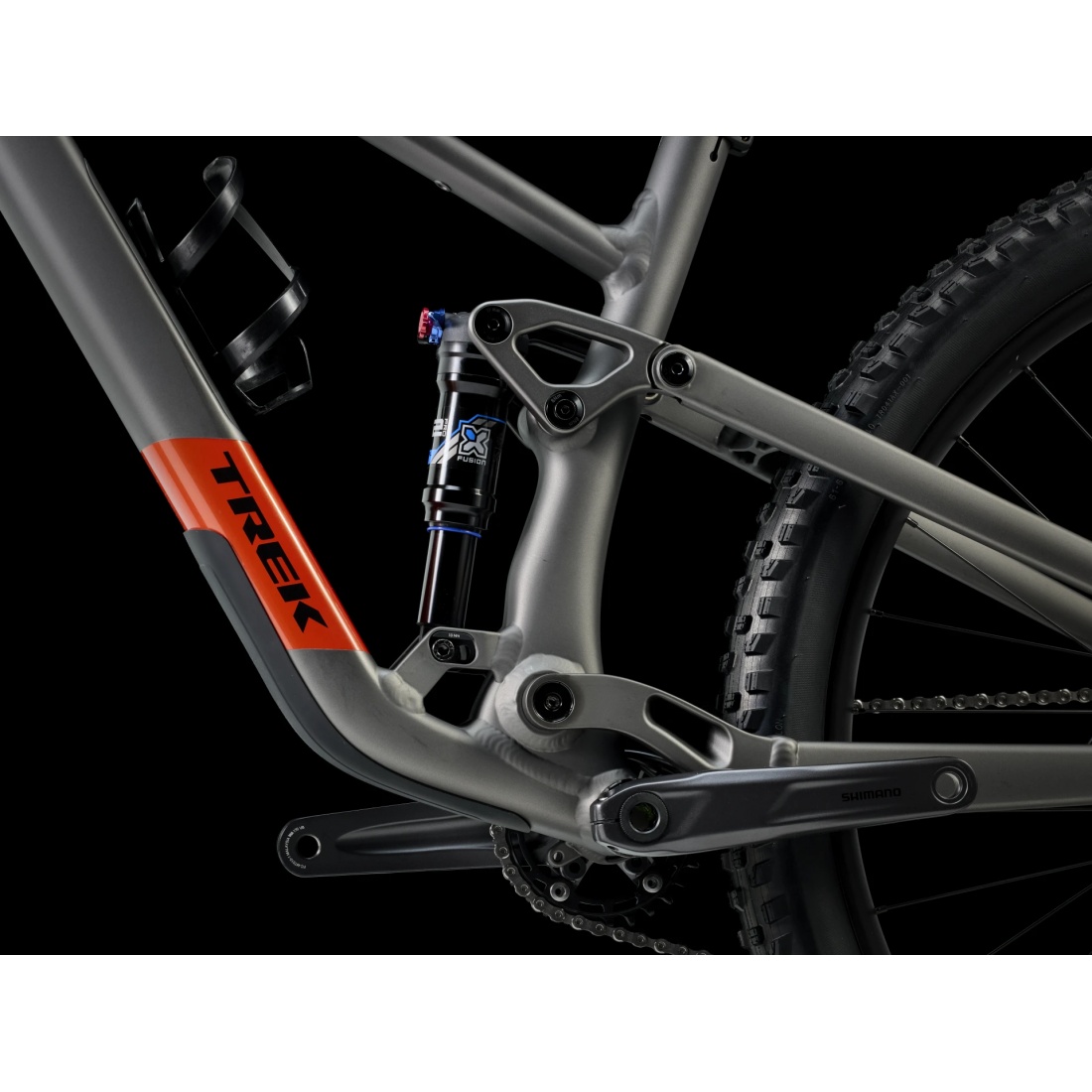

Shock:
X-Fusion Pro 2 with 2-position damping, 185x50 mm dimensions.

Maximum compatible fork travel:
140 mm.

Hubs:

• Front: Bontrager alloy hub, 6-bolt, Boost110, 15 mm thru-axle.
• Rear: Bontrager alloy hub with sealed bearings, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle.

Rear wheel skewer:
Bontrager Switch thru-axle with removable lever.

Rims:
Bontrager Line TLR 30, Tubeless Ready, 32-hole, Presta valve.

Tires:

• Size S: Bontrager Gunnison Elite XR, tubeless-ready, wire bead, 60 TPI, 27.5x2.40”.
• Size M, ML, L, XL: Bontrager Gunnison Elite XR, tubeless-ready, wire bead, 60 TPI, 29x2.40”.

Tire accessories:
Bontrager TLR sealant, 177 ml, and Bontrager TLR rim strip.

Maximum tire size:

• Frame: Up to 29 x 2.5 inches.
• Fork: See manufacturer specifications.

Shifting components:

• Shifter: Shimano Deore M6100, 12-speed.
• Rear derailleur: Shimano Deore M6100, long cage.

Drivetrain:

• Crankset: Shimano MT512, 30T chainring, 55 mm chainline, 170 mm crank length.
• Bottom bracket: Shimano BB-MT501 BSA.
• Cassette: Shimano Deore M6100, 10-51T, 12-speed.
• Chain: Shimano Deore M6100, 12-speed.

Maximum chainring size:
1x: 34T maximum, 30T minimum.

Saddle:
Bontrager Verse P3, steel rails.

Seatpost:

• Size S: TranzX JD-YSI22, 100 mm travel, internal routing, 34.9 mm diameter, 346 mm length.
• Size M, ML, L, XL: TranzX JD-YSI22, 170 mm travel, internal routing, 34.9 mm diameter, 497 mm length.

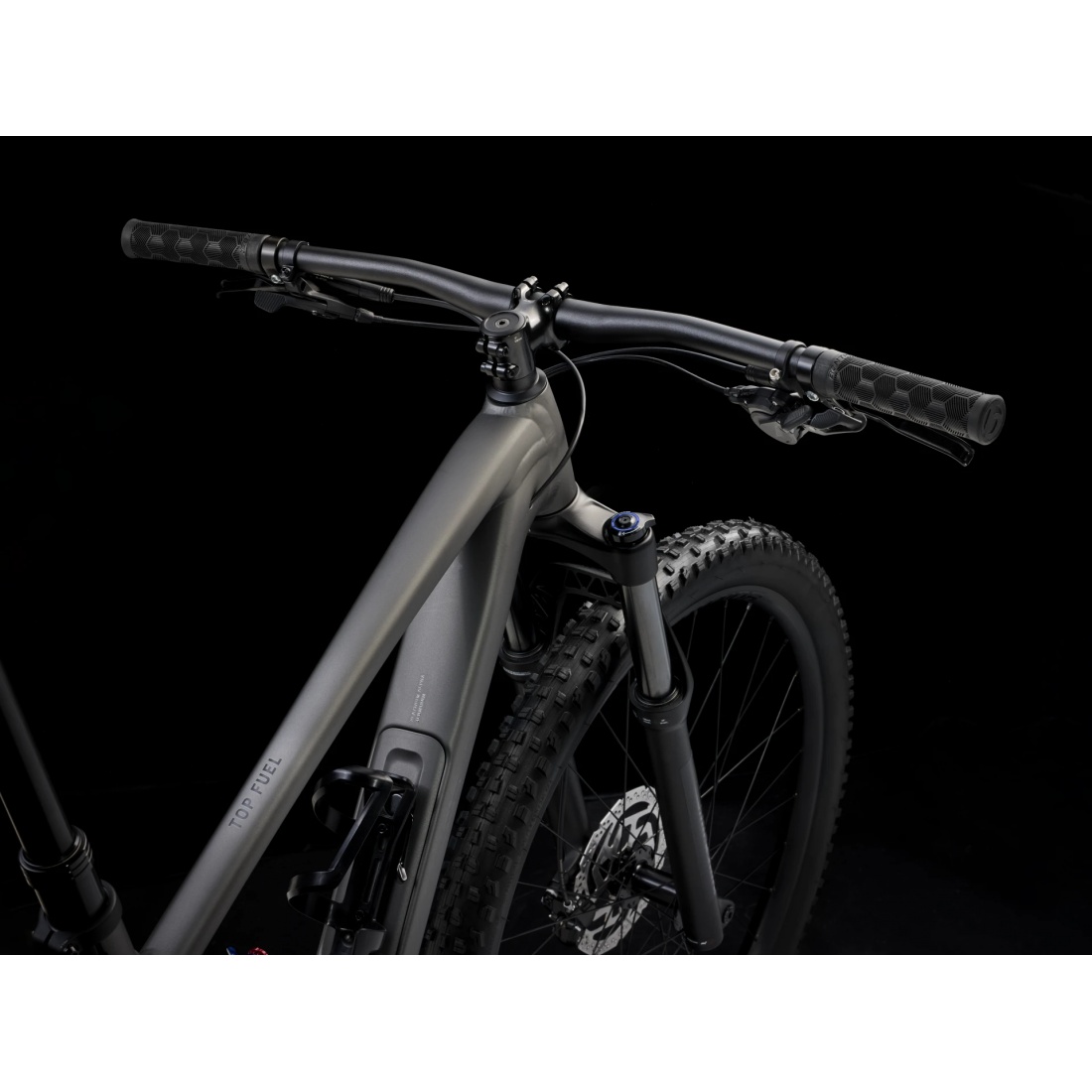

Handlebar:
Bontrager alloy handlebar, 750 mm width, 15 mm rise, 31.8 mm diameter.

Grips:
Bontrager XR Trail Comp, nylon lock-on.

Stem:
Bontrager Comp, 31.8 mm diameter, Blendr compatible, 7° angle, 50 mm length.

Brakes:
Shimano MT200 hydraulic disc brakes.

Brake rotor specifications:

• Frame: Maximum disc size 200 mm, minimum 180 mm.
• Fork: See manufacturer specifications.

Accessories:
Bontrager frame storage bag (BITS).

Weight:
Size M: 15.90 kg / 35.06 lbs.

Maximum supported weight:
Total maximum weight (bike, rider, and luggage): 136 kg.
