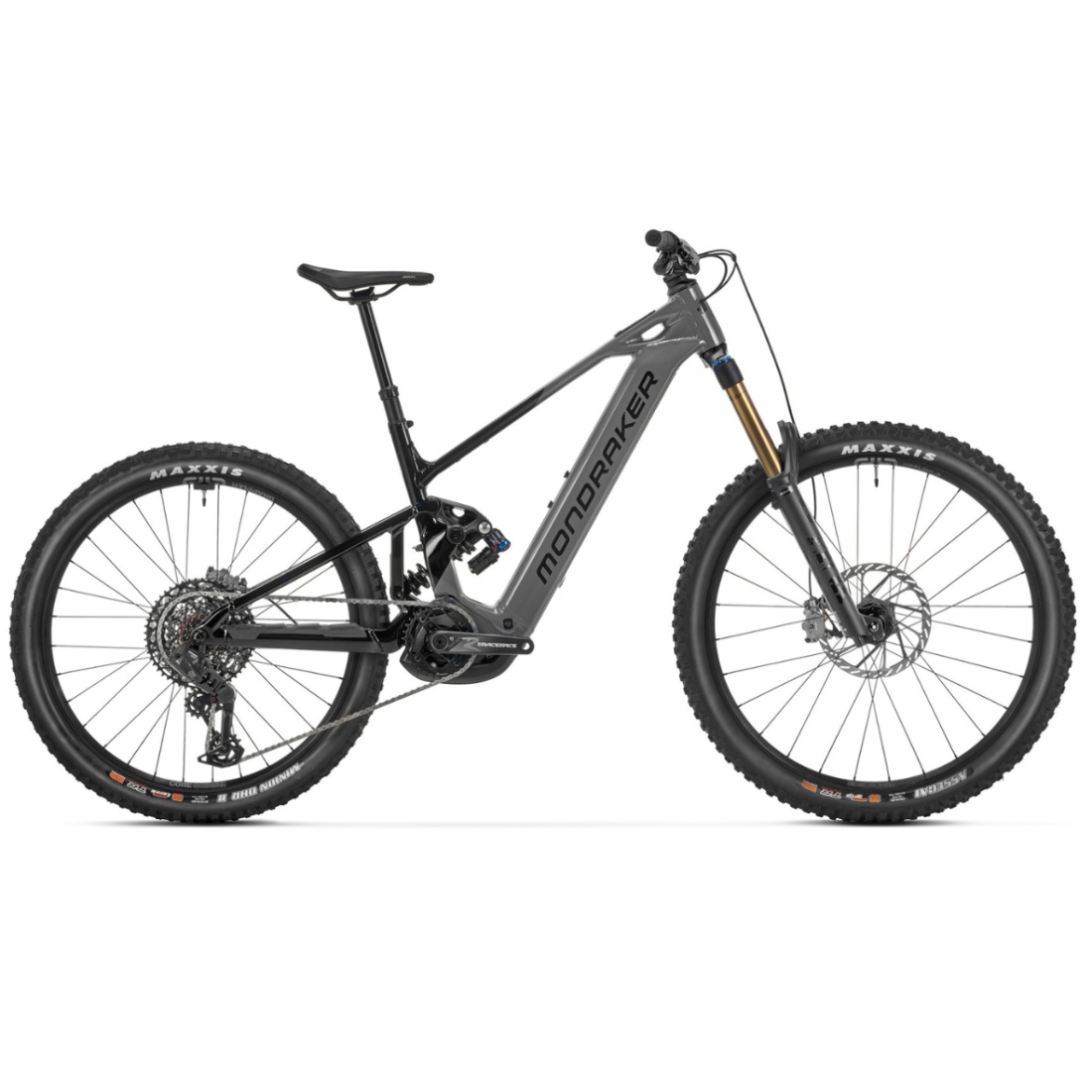

MONDRAKER LEVEL RR 2026

Frame

Level 6061 Alloy Stealth Evo, Updated Zero Suspension System, Mullet, 170mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, exclusive plastic motor covers

Sizes

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Rear shock

Fox DHX2 Performance Elite, 205x65mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings

Shock settings

CL50 compression, RL40 rebound, Rezi LML, Bleed 1,1, B60. Spring rate:S size 350 lbs, M size 400 lbs, size ML 450 lbs, L size 500 lbs, XL size 500 lbs

Fork

Fox 38 29 Float GRIPX2 Factory Kashima, 180mm, tapered steerer tube, Boost 15x110mm Kabolt axle, 44mm offset. Settings: high and low-speed compression, high and low-speed rebound, air preload

Headset

Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

Stem

Onoff S6 30mm 0º, 6061 forged alloy + CNC, 31.8mm barbore

Handlebar

Onoff S6 1.0 7050 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Grips

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size

Seatpost

Onoff Pija dropper internal, diameter 31.6mm, 1X Remote lever with bearing, S size: 140-115mm (388-235mm), M size: 160-135mm (428-255mm), ML size: 180-155mm (468-275mm), L size: 210-185mm (528-305mm), XL size: 210-185mm (528-305mm)

Saddle

FIZIK Terra Aidon X5 145mm

Front brake

Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Rear brake

Sram Maven Bronze, 18 and 19.5-millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Brake lever

Sram Maven Bronze , SwingLink and lever pivot bushings, tools-free reach adjust

Rims

e*thirteen Grappler Core, Hookless 6066 Welded Aluminum 30mm internal width, tubeless ready, 28F spokes 29 front, 27''5 rear

Spokes

e*thirteen custom J-bend, triple-butted steel, alloy nipples, nipple washers

Front hub

e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts

Rear hub

e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG Freehub

Front tire

Maxxis Assegai 29x2.6WT, tubeless ready, 3C Maxx Grip compound, DD protection, 120x2TPI, folding bead

Rear tire

Maxxis Minion DHR II 27’5x2.6 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

Crankset

Race Face Aeffect ebike, All sizes: 160mm

Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Chain

Sram GX Eagle T-Type, 12s, Powerlock

Rear derrailleur

Sram S1000 Eagle AXS T-Type, 12s

Shift levers

Sram Eagle AXS Pod MMX, 12s

Casette

Sram XS-1270, 10-52T, T-Type, 12s

Weight

26,9 kg

Display

Kiox 400C / Bosch Mini Remote

Motor

Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery

Bosch Powertube 800Wh
