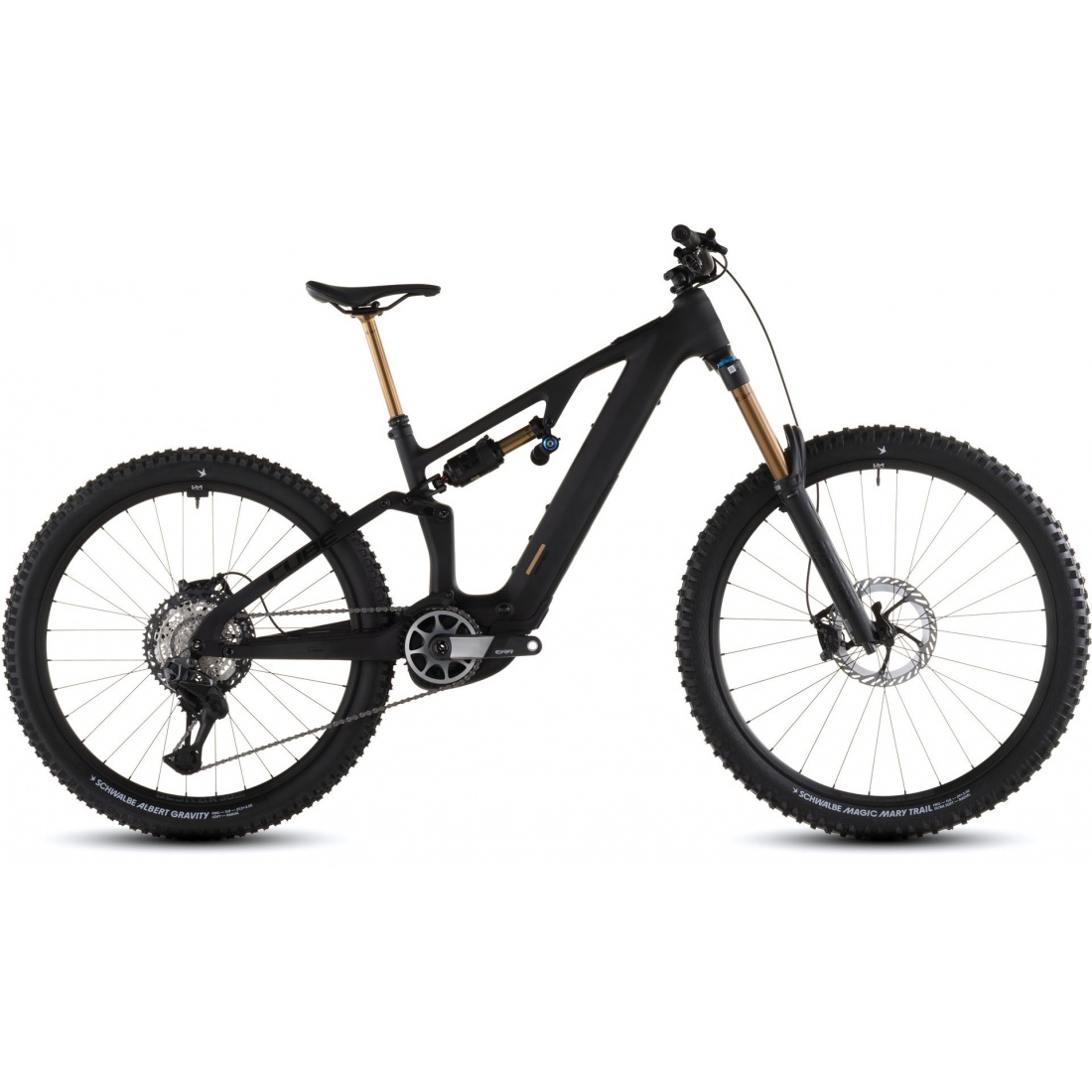

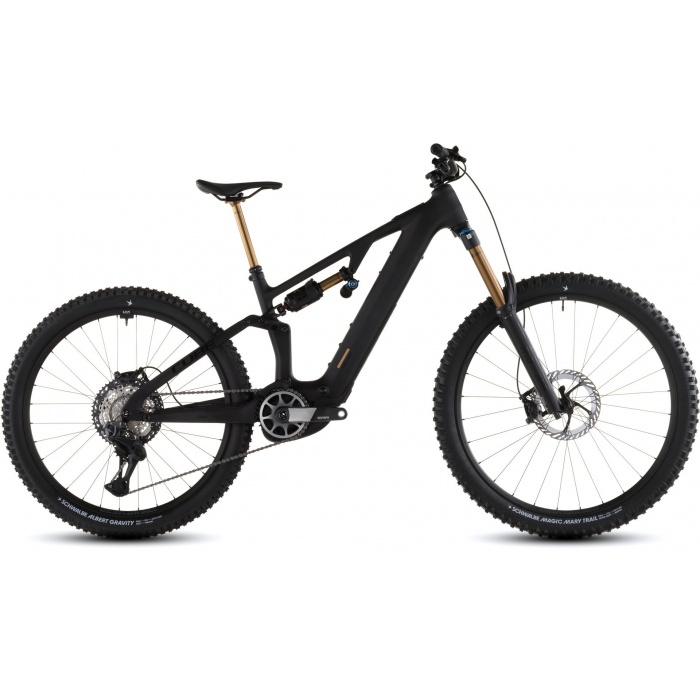

CUBE AMS HYBRID 177 C:62 AT 600X 2026

Frame

• C:62® Monocoque Advanced Twin Mold Technology

• Efficient Trail Control, FSP 4-Link, Agile Trail Geometry

• Boost 148, UDH™

• Fully integrated battery, advanced internal cable routing

Sizes

• S, M, L, XL

Motor & Electronics

• Motor: Bosch Performance Line CX-R, 100 Nm (BDU38)

• Remote: Bosch Mini Remote

• Display: Bosch Kiox 400C

• Battery: Bosch PowerTube 600 Wh

• Charger: Bosch 4A

Suspension

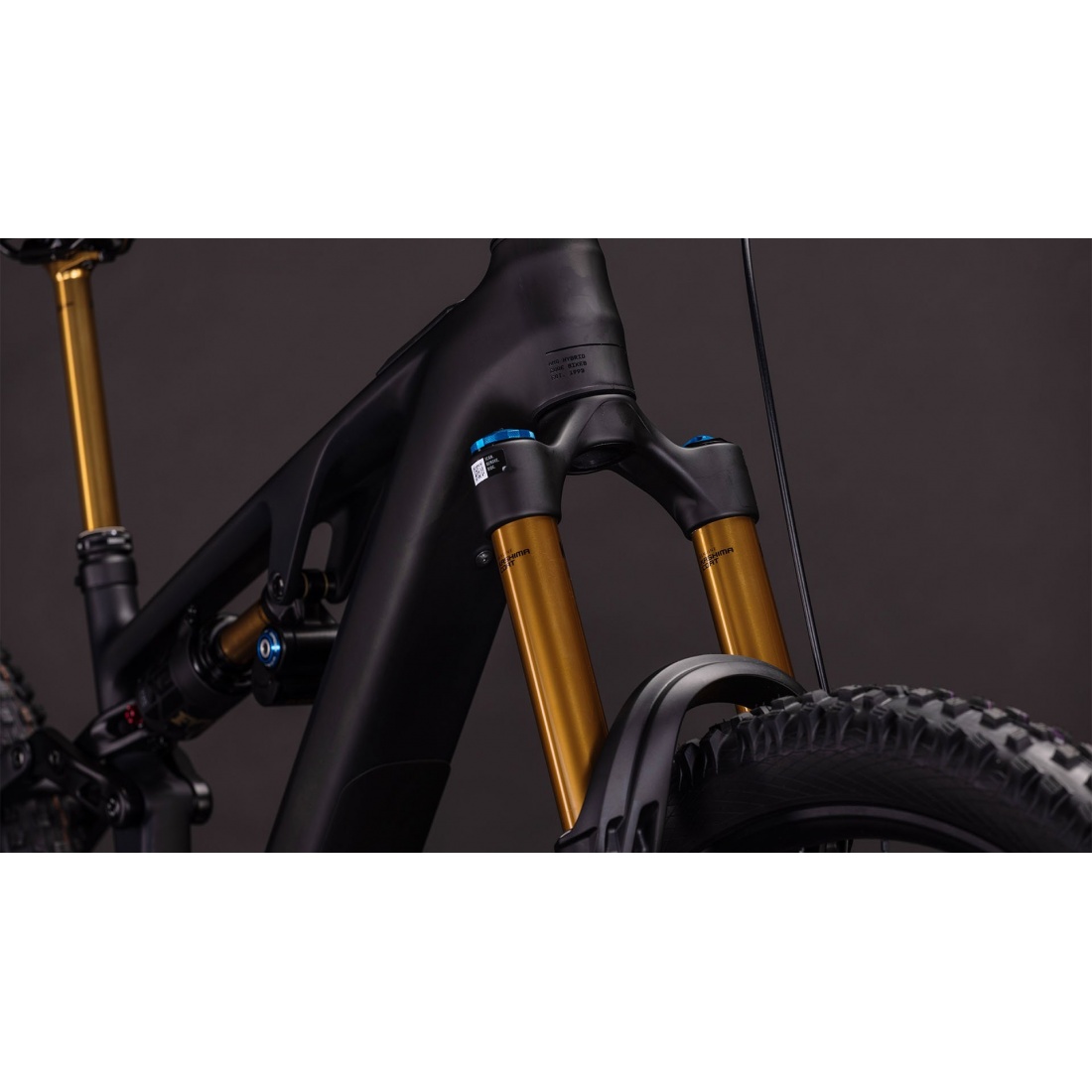

• Fork: Fox 38 Float Factory GRIPX2, tapered, 15x110 mm, E-Bike Optimized, 170 mm

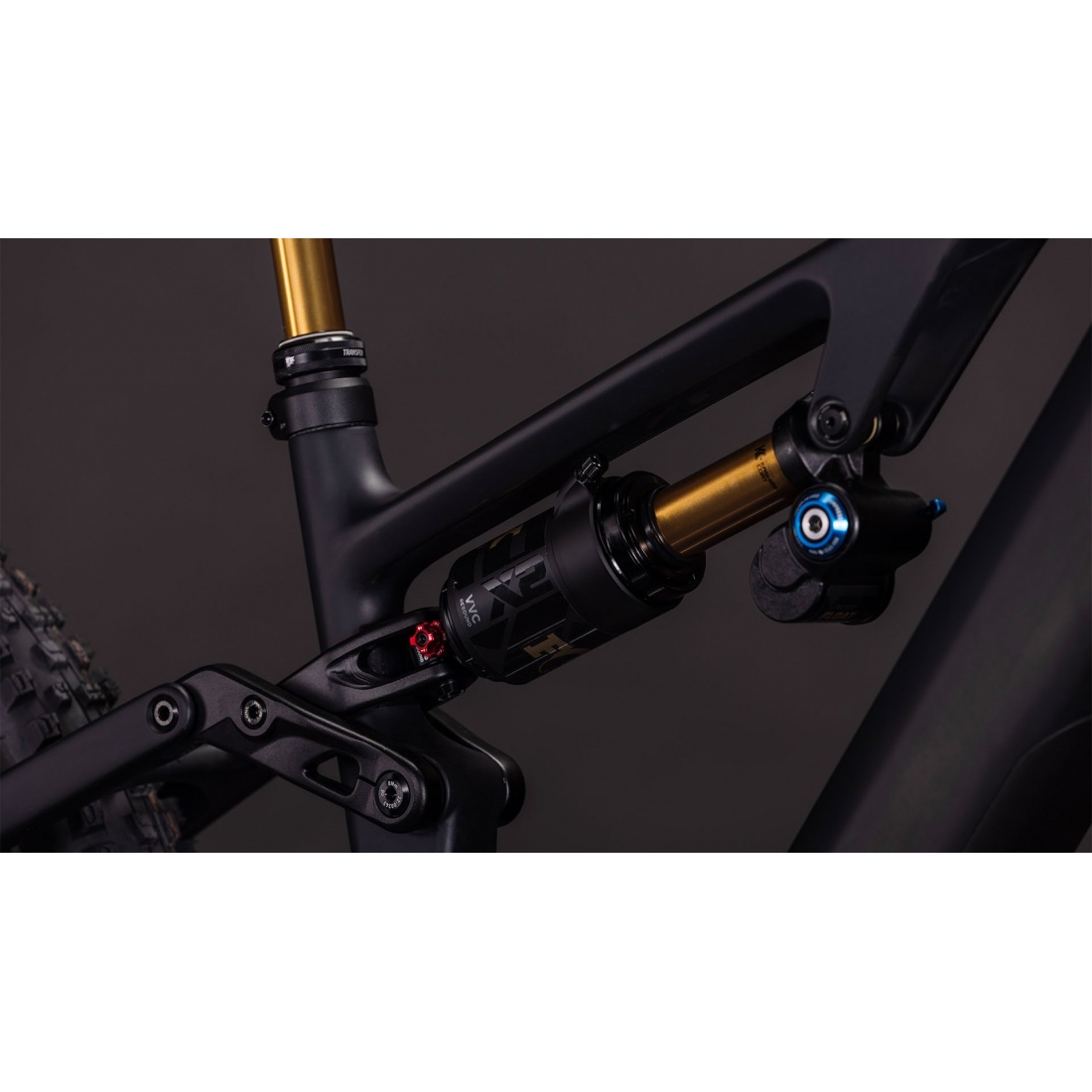

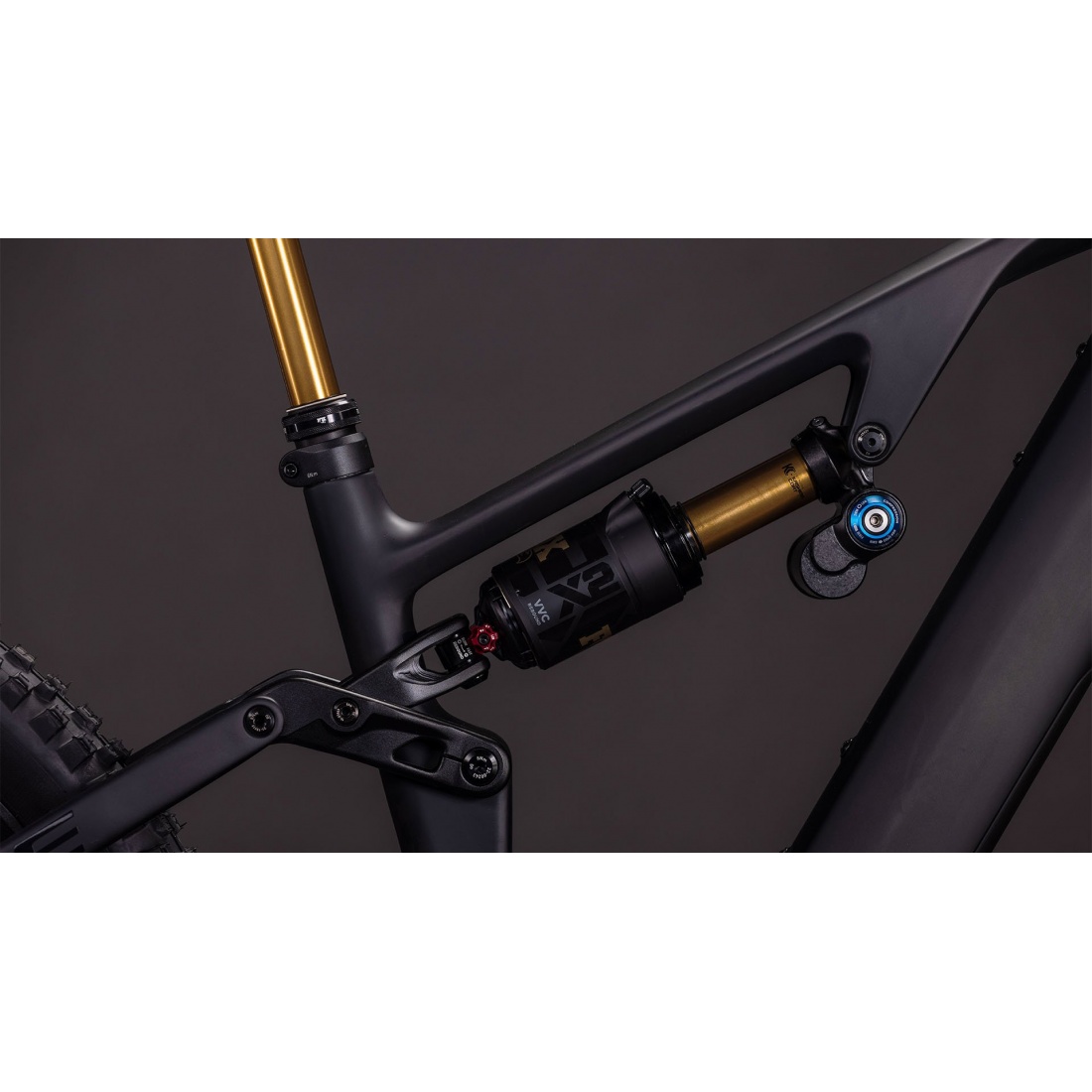

• Shock: Fox Float X2 Factory, 230x65 mm, adjustable HSC/LSC/HSR/LSR, 2-pos lever

• Spacers: Front 30x8 mm, Rear without DU-Bushing 15 mm

Drivetrain

• Rear derailleur: Shimano XT Di2 RD-M8260-SGS, 12-speed, electronic

• Shifter: Shimano XT Di2 SW-M8250-IR, Direct Attach

• Crankset: Race Face ERA E-MTB, 36T

• Cassette: Shimano XT CS-M8200, 10-51T

• Chain: Shimano XT CN-M8100

• Chain guide: Reverse Flip-Guide E, Direct Mount, I-Plate

Brakes

• Shimano XT BR-M8220, hydraulic disc, 203/203 mm

Cockpit

• Headset: ACROS AZF-675 ICR, internal cable routing, angle adjustment inserts

• Stem: Race Face Turbine R 35

• Handlebar: Race Face ERA 35

• Grips: ACID Disrupt, Soft Compound

Wheels & Tires

• Wheels: Newmen Beskar 30 base/strong, 28/32 spokes, 15x110 mm / 12x148 mm, Tubeless Ready

• Front tire: Schwalbe Magic Mary Trail Pro, Addix Ultrasoft, Kevlar, 2.5

• Rear tire: Schwalbe Albert Gravity Pro, Addix Soft, Kevlar, 2.5

Additional Equipment

• Saddle: ACID Venec EMTB Trail 140

• Seatpost: Fox Transfer Factory, Ø 31.6 mm, Kashima coated

• Pedals: ACID PP MTB

Finish

• Color: carbon’n’gold

• Weight: 21.4 kg
