CUBE AMS HYBRID 177 C:62 SUPER TM 600X 2026

Frame

• C:62® Monocoque Advanced Twin Mold Technology

• Efficient Trail Control, FSP 4-Link, Agile Trail Geometry

• Boost 148, UDH™

• Fixed integrated battery, advanced internal cable routing

Sizes

• M, L, XL

Motor & Electronics

• Motor: Bosch Performance Line CX-R, 100 Nm (BDU38)

• Remote: Bosch Mini Remote

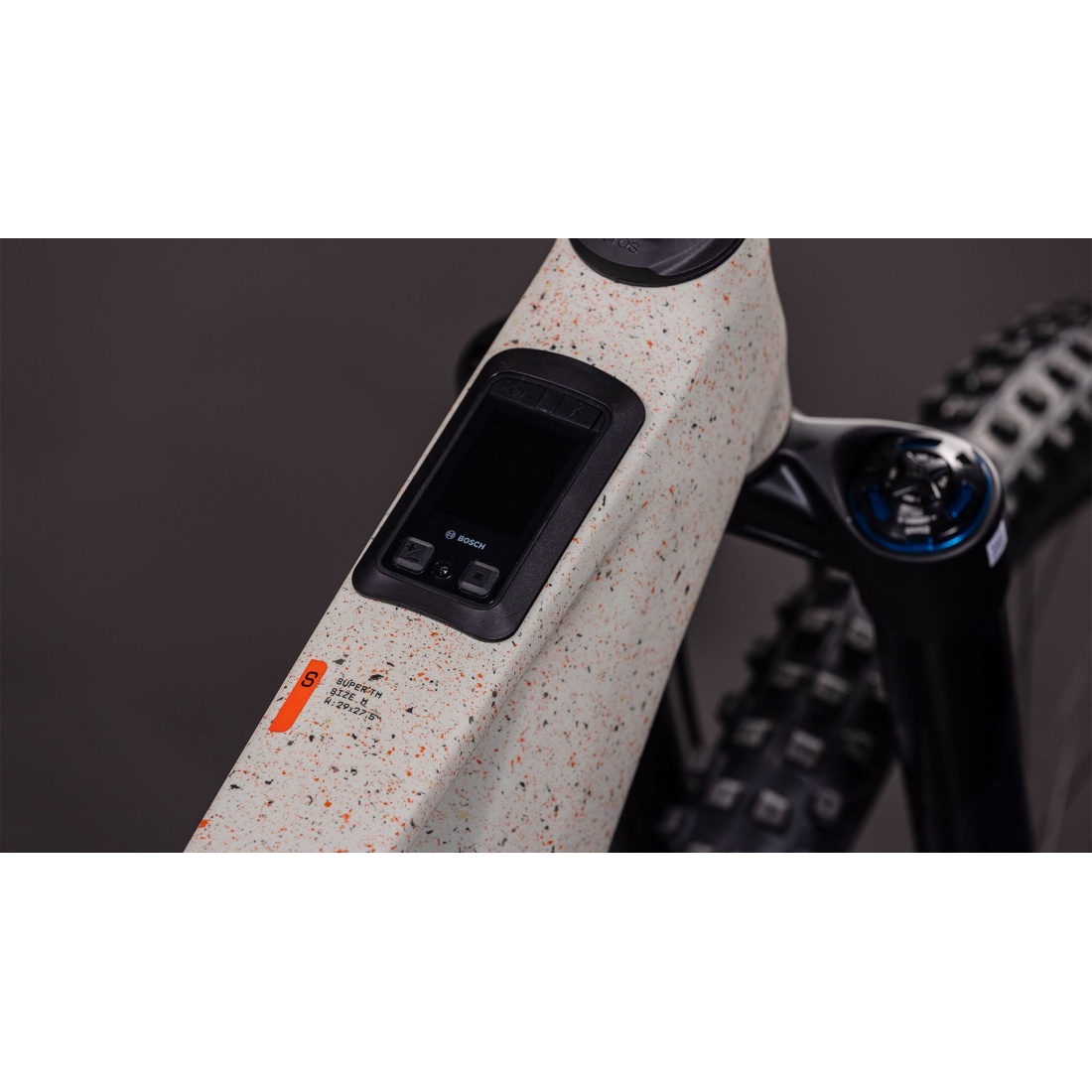

• Display: Bosch Kiox 400C

• Battery: Bosch PowerTube 600 Wh

• Charger: Bosch 4A

Suspension

• Fork: Fox Podium Factory GRIPX2, tapered, 20x110 mm, 170 mm

• Shock: Fox Float X2 Factory, 230x65 mm, adjustable HSC/LSC/HSR/LSR, 2-pos lever

• Spacers: Front 30x8 mm, Rear without DU-Bushing 15 mm

Drivetrain

• Rear derailleur: Sram XX Eagle AXS™, 12-speed, electronic

• Shifter: Sram AXS™ Pod Ultimate Controller

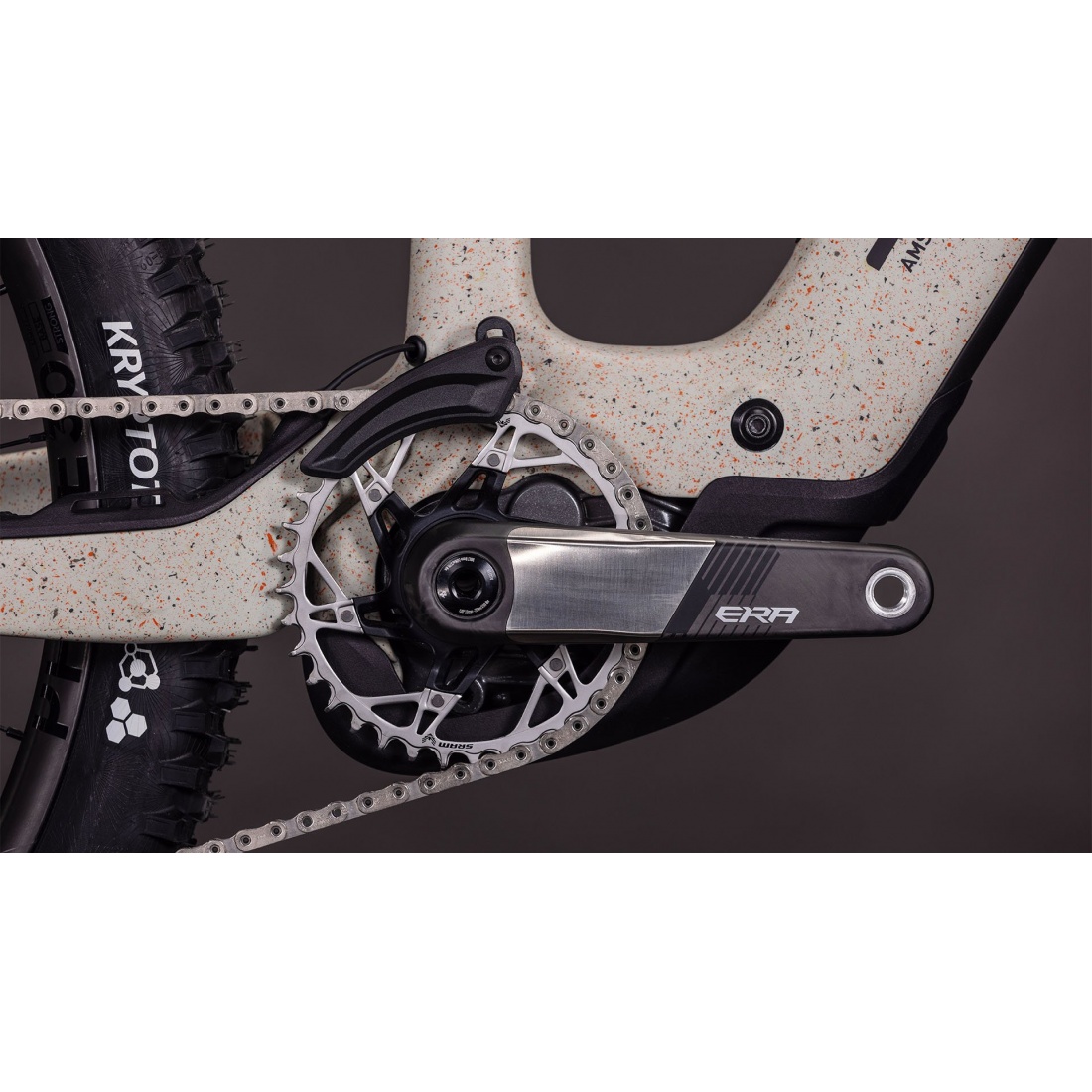

• Crankset: Race Face ERA E-MTB, 36T

• Cassette: Sram XS-1297, 10-52T

• Chain: Sram XX Eagle

• Chain guide: Reverse Flip-Guide E, Direct Mount, I-Plate

Brakes

• Sram Maven Ultimate, hydraulic disc, 200/200 mm

Cockpit

• Headset: ACROS AZF-675 ICR, internal cable routing, angle adjustment inserts

• Stem: Race Face Turbine R 35

• Handlebar: Race Face ERA 35

• Grips: ACID Disrupt, Soft Compound

Wheels & Tires

• Wheels: Newmen Phase 30 base/strong, 28/32 spokes, 20x110 mm / 12x148 mm, Tubeless Ready

• Front tire: Conti Argotal, Enduro Super Soft, Tubeless Ready, 2.4

• Rear tire: Conti Kryptotal Rear, Downhill Soft, Tubeless Ready, 2.4

Additional Equipment

• Saddle: ACID Venec EMTB Trail 140

• Seatpost: Fox Transfer Factory, Ø 31.6 mm, Kashima coated

• Pedals: ACID PP MTB

• Extras: Schwalbe Aerothan™ inner tubes with ClikValve

Finish

• Color: reedbeigegrit’n’orange

• Weight: 21.7 kg
