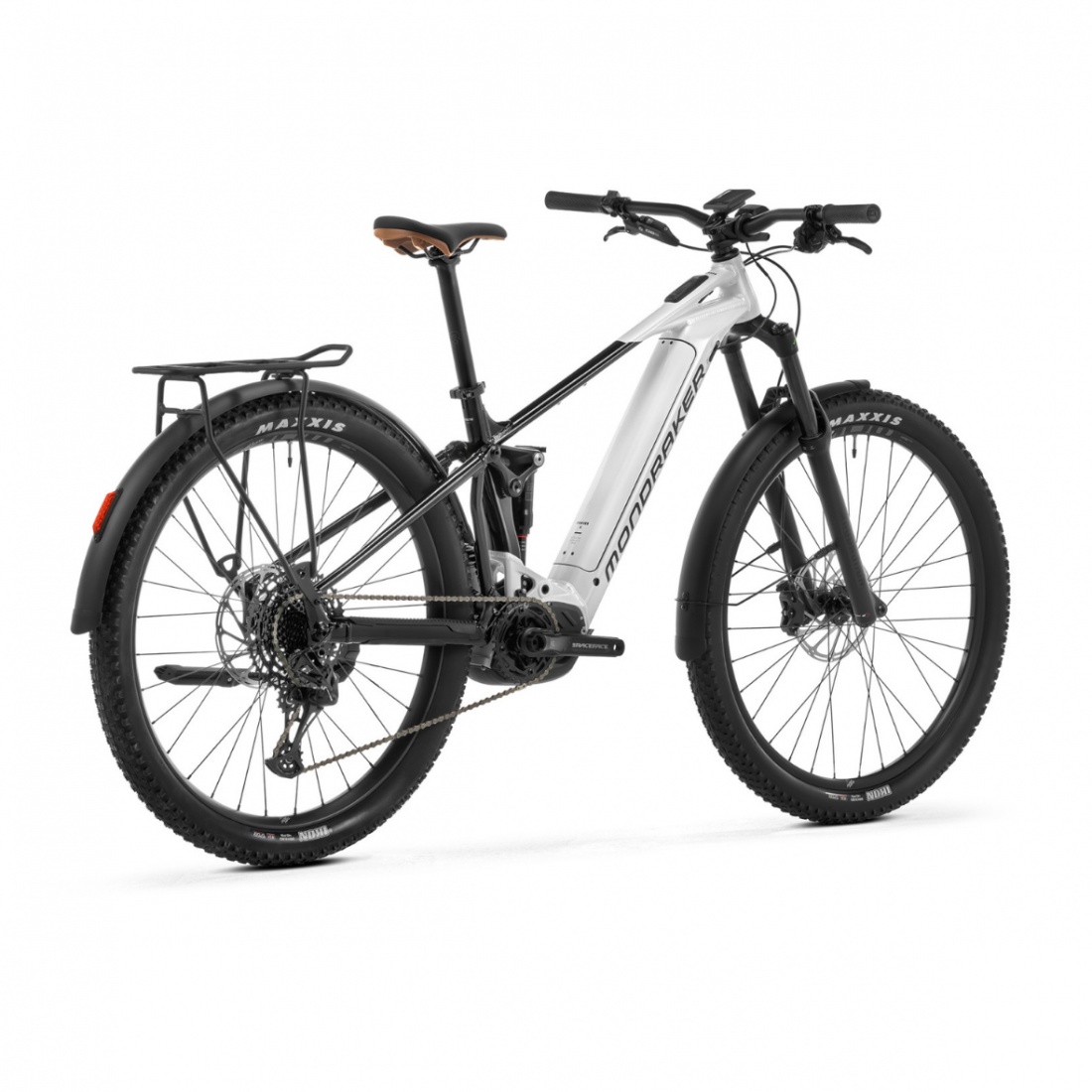

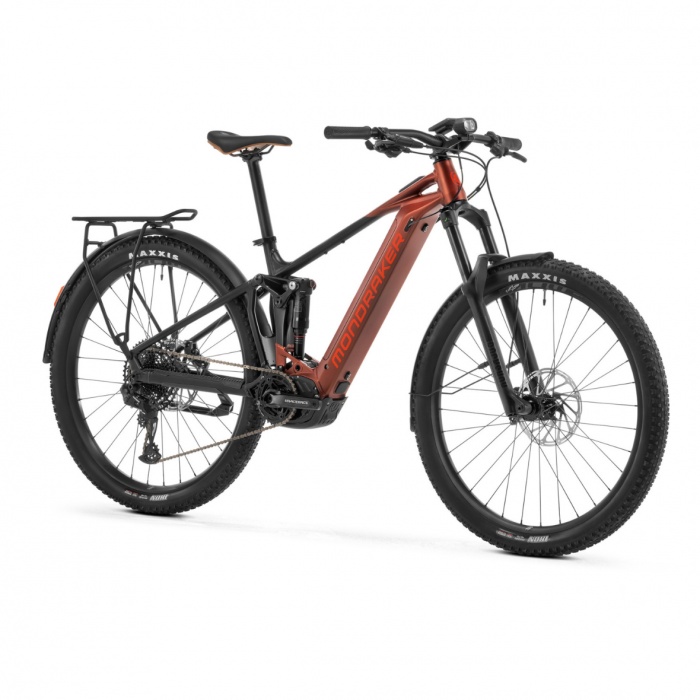

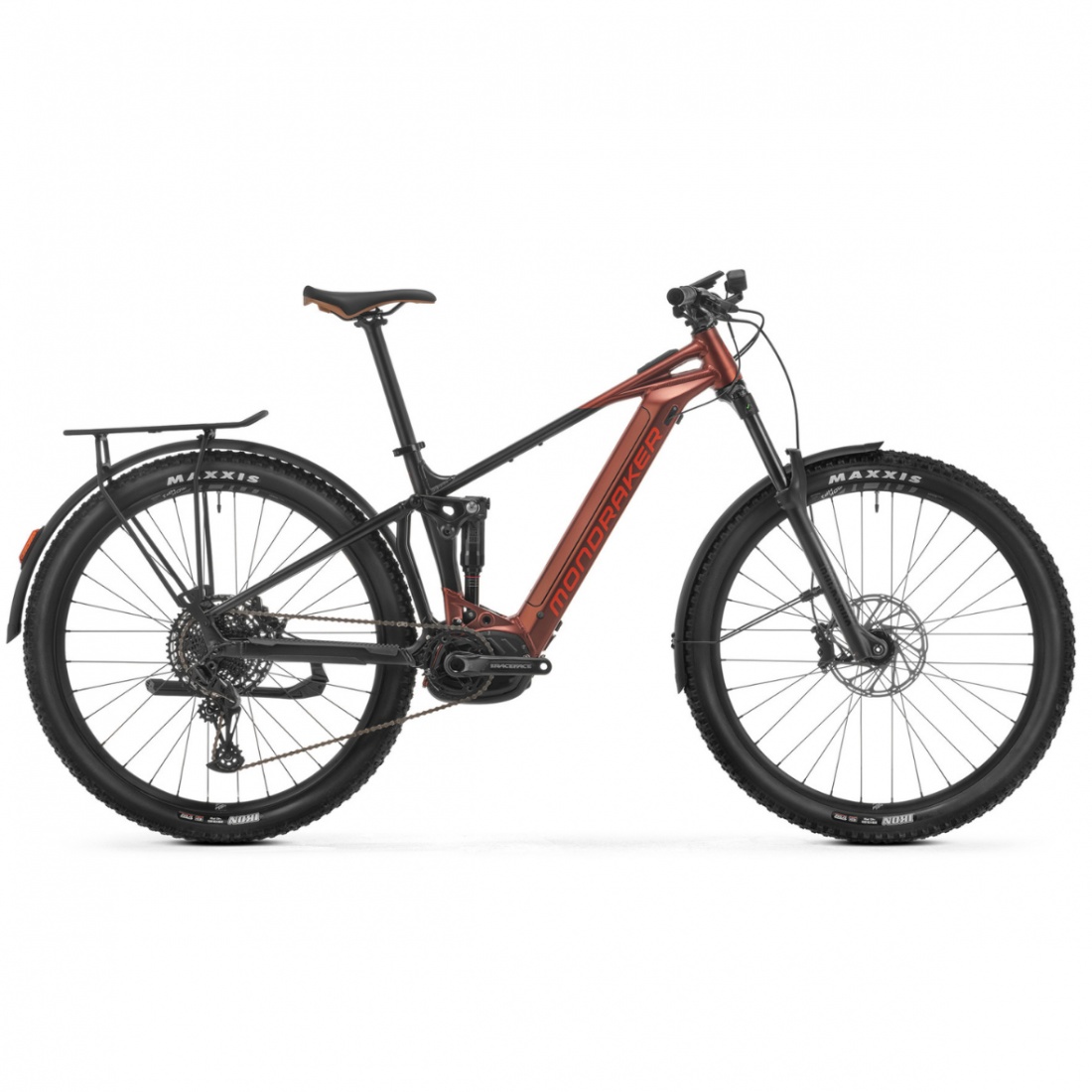

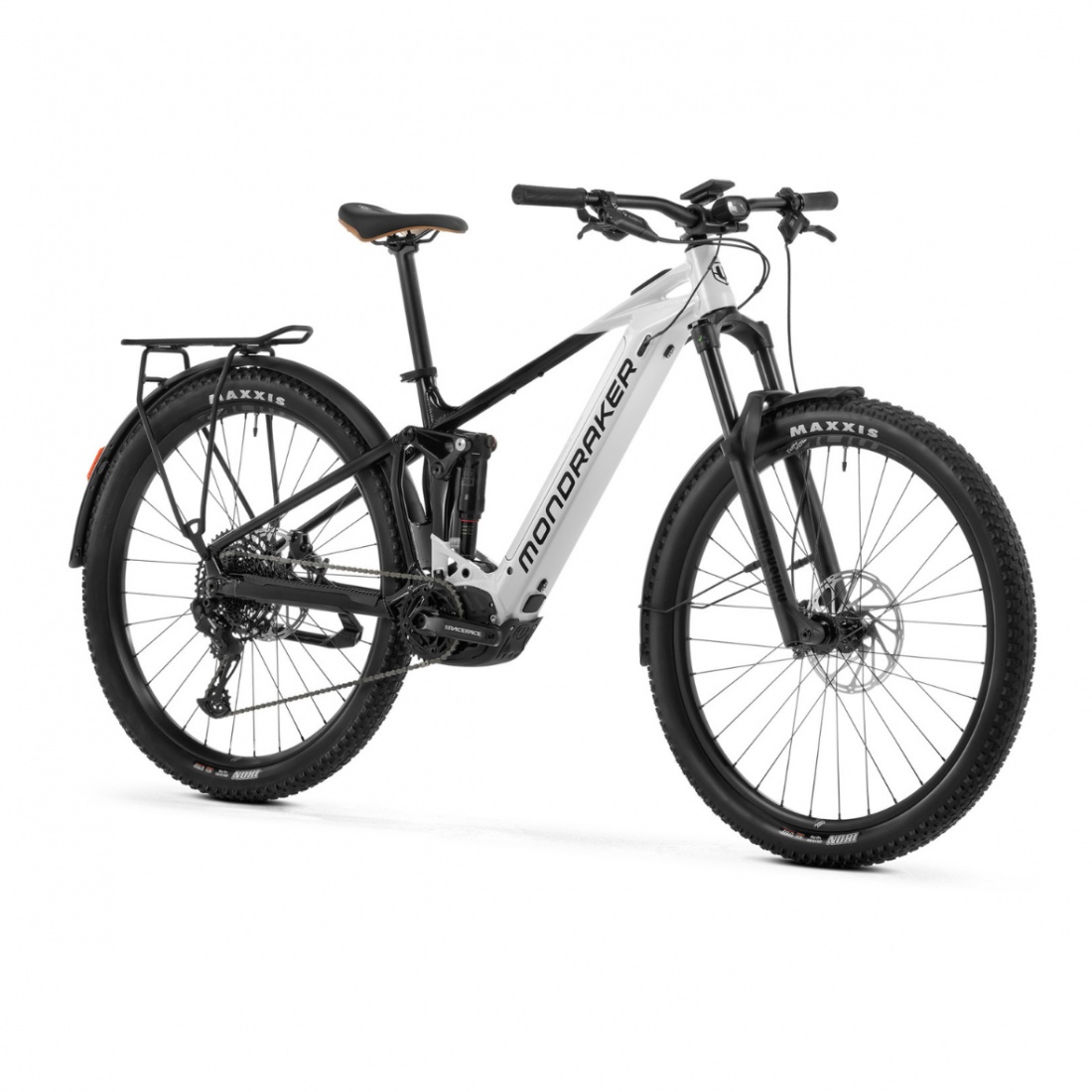

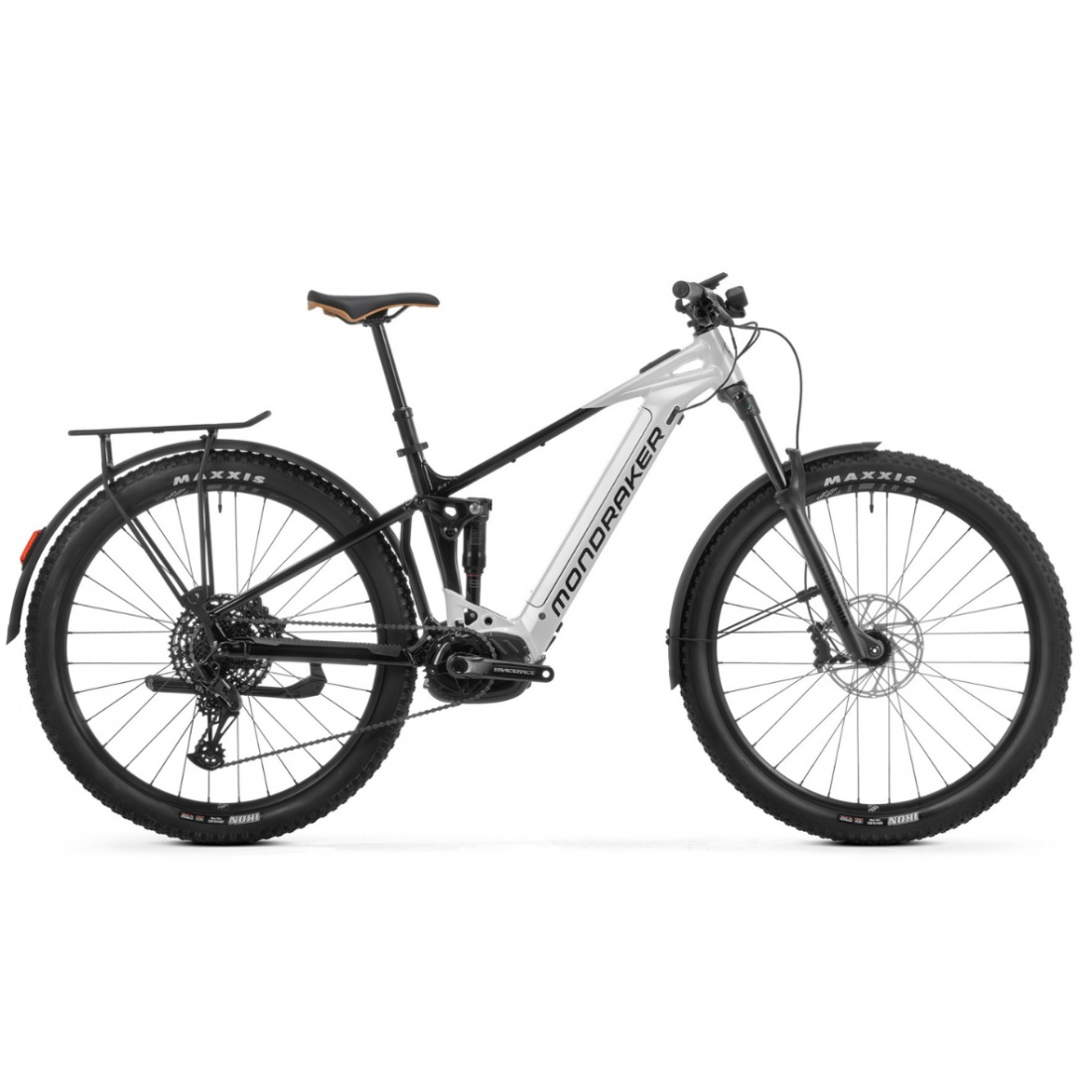

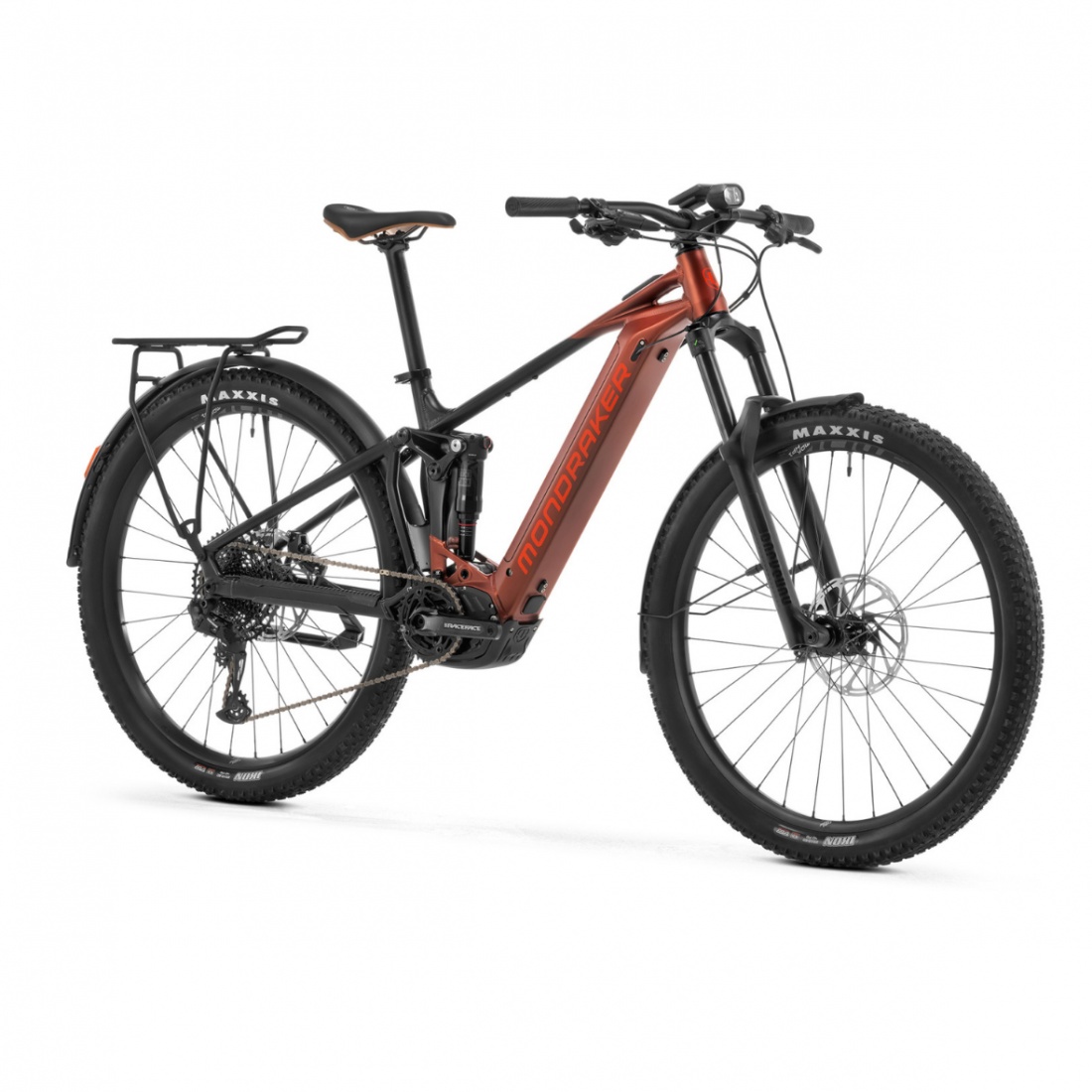

MONDRAKER CHASER X 2025

Frame

Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 140mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard

Sizes

S: 380mm / M: 420mm / L: 450mm / XL: 490mm

Rear shock

RockShox Deluxe Select R DebonAir, 205x60mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings

Shock settings

DebonAir Progressive, Light compression, Linear rebound, 1 Token

Fork

RockShox Recon Silver RL 29, 150mm, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload

Headset

Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º

Stem

Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore

Handlebar

Onoff S3 1.0 6061 alloy, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 1.5 rise.

Grips

Onoff Beehive, 1lock-on, 135mm

Seatpost

Onoff S3 0-R, diameter 31.6mm, length 400mm

Saddle

MDK urban

Front brake

Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Rear brake

Sram DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads

Brake lever

Sram DB8, tool reach adjust, lever pivot bushings

Rims

MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes

Spokes

CN round stainless steel

Front hub

Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts

Rear hub

Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts, HG freehub

Front tire

Maxxis Ikon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

Rear tire

Maxxis Ikon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead

Crankset

Race Face Aeffect-R ebike, 165mm

Rings

Sram X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD

Pedals

Urban pedal resin black

Chain

Sram SX Eagle, 12s, Powerlock

Rear derrailleur

Sram SX Eagle,12s

Shift levers

Sram Trigger SX Eagle, 12s, X-Actuation 1:1, single click

Casette

Sram PG-1210, 11-50T, 12s

Derailleur hanger

Sram UDH

Others

Front light: 150LUX output DC 6-12V, waterproof Alloy cage. Rear Light: Fender Mount, w/ Reflective, e-bike version, 6-12V. Fenders: Alloy black MDK custom fenders. Rack: Alloy MDK rear Rack, Max loading 25kg. Kickstand: Massload KSA18-40

Weight

23,6 kg

Display

Bosch Intuvia 100 / Bosch Mini Remote / Bosch System Controller

Motor

New Bosch Performance Line CX (25Km/h) SMART SYSTEM (BDU384Y)

Battery

Bosch Powertube 625Wh
