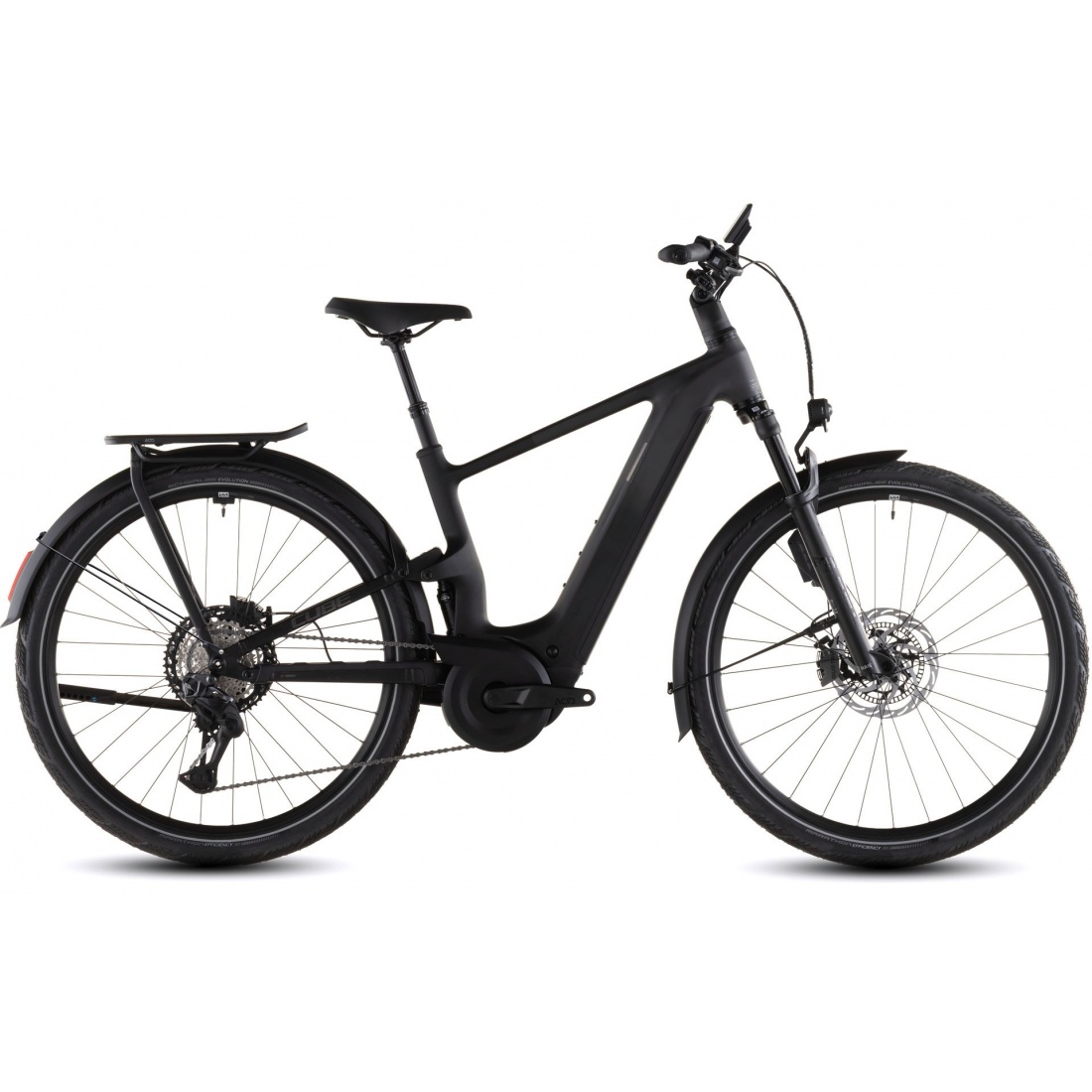

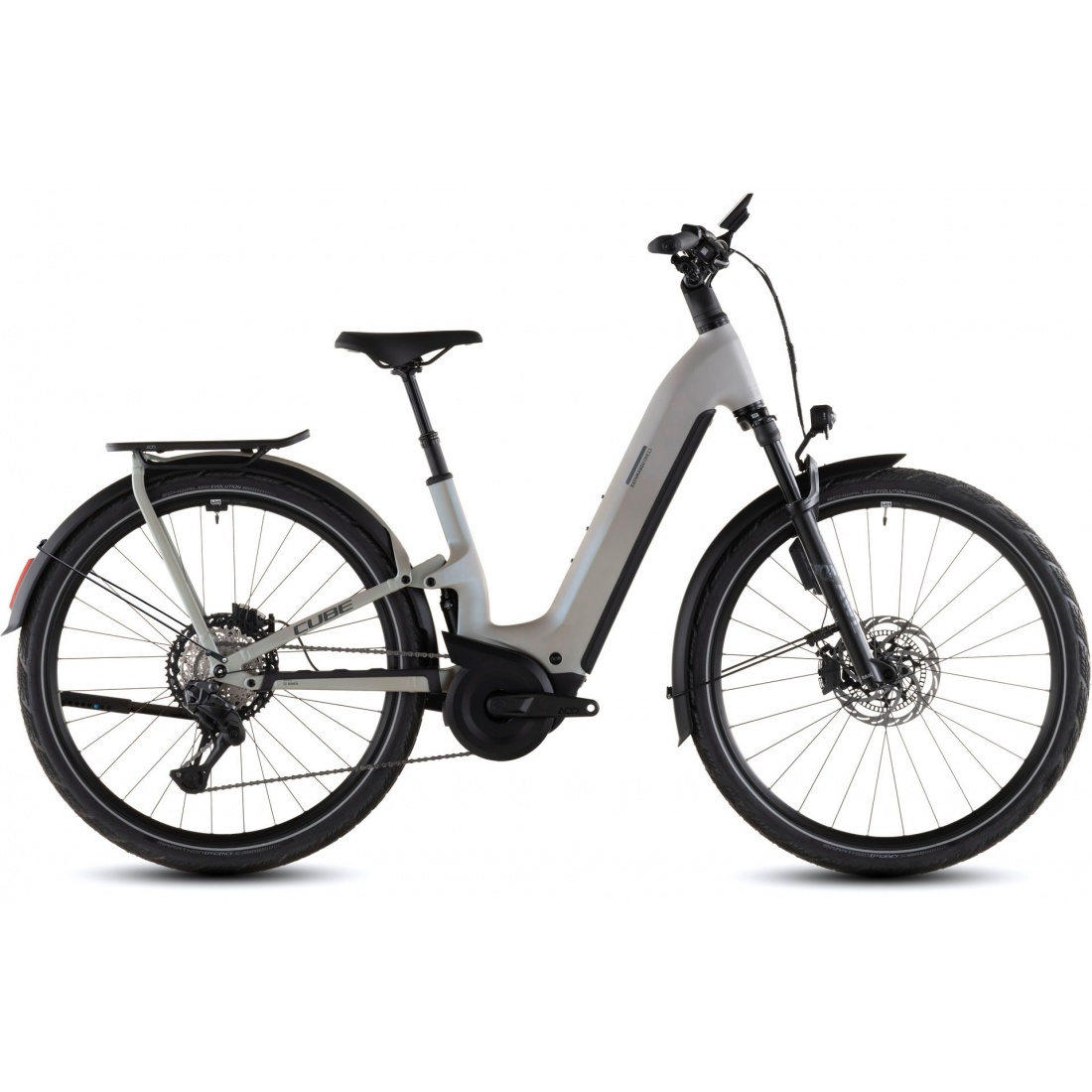

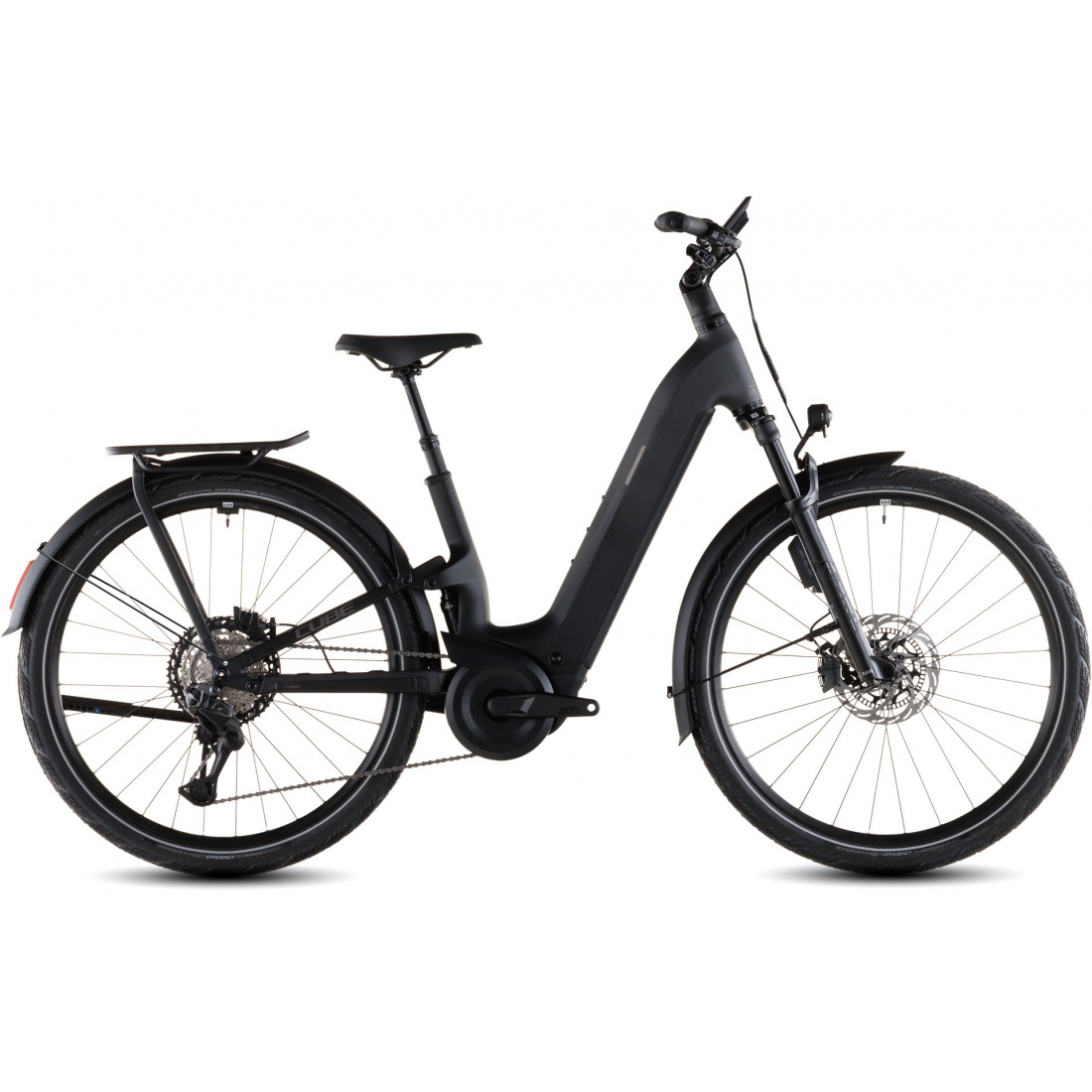

CUBE KATHMANDU HYBRID ONE11 HPC SLT 800 2026

Frame

• C:62® Monocoque Advanced Twin Mold Technology, Aluminium 6061 T6 Rear Triangle

• Efficient Trail Control, FSP 4-Link

• Efficient Comfort Geometry

• Boost 148, UDH™

• Fully integrated battery, advanced internal cable routing

• Integrated Carrier 3.0

• Integrated seat clamp

Motor & Electronics

• Motor: Bosch Performance Line CX, 100 Nm max (BDU38)

• Remote: Bosch LED Remote

• Battery: Bosch PowerTube 800 Wh

• Display: Bosch Kiox 500

• Charger: Bosch 4A

• ABS Technology: Bosch ABS

Suspension

• Fork: Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, tapered, 15x110 mm, E-Bike Optimized, 100 mm

• Rear shock: Fox Float Performance 165x45 mm, Trunnion Mount

Drivetrain

• Crankset: ACID MTB Hybrid Pro, 40T

• Rear derailleur: Shimano XT Di2 RD-M8260-SGS, 12-speed, electronic shifting

• Cassette: Shimano XT CS-M8100, 10-51T

• Chain: Shimano CN-M6100

• Shifter: Shimano XT Di2 SW-M8250-IR, Direct Attach

Brakes

• Magura Gustav PRO, hydraulic, 4-piston front/rear, 203 mm discs

Cockpit

• Headset: ACROS AZF-1035, internal cable routing, top & bottom ZS 56 mm, HIC

• Stem: CUBE Comfort Stem Pro, Ø 31.8 mm, adjustable

• Handlebar: CUBE Comfort Trail Bar HD, 700 mm

• Grips: ACID Travel Comfort

Wheels & Tires

• Rims: Newmen Performance 30 base/strong, 28/32 spokes, Tubeless Ready

• Hubs: 15x110 mm front / 12x148 mm rear

• Tires: Schwalbe Marathon Efficiency, Super Race, V-Guard, 55-622

Additional Equipment

• Saddle: ACID Shen Pro

• Seatpost: CUBE Dropper Post, handlebar lever, internal cable routing, Ø 31.6 mm

• Pedals: ACID PP Trekking

• Front light: ACID Front Light PRO-E 200 X-Connect, 12V DC

• Rear light: ACID Mudguard Rear Light PRO-E, 12V DC

• Kickstand: ACID FM Pure Kickstand

• Mudguards: ACID 65/60 Integrated Carrier 3.0 / SIC 2.0

• Bell: Knog Oi

• Rack: ACID Integrated Carrier 3.0, CUBE Adapter compatible

Finish

• Color: carbon’n’silverdust

• Weight: 27.1 kg
