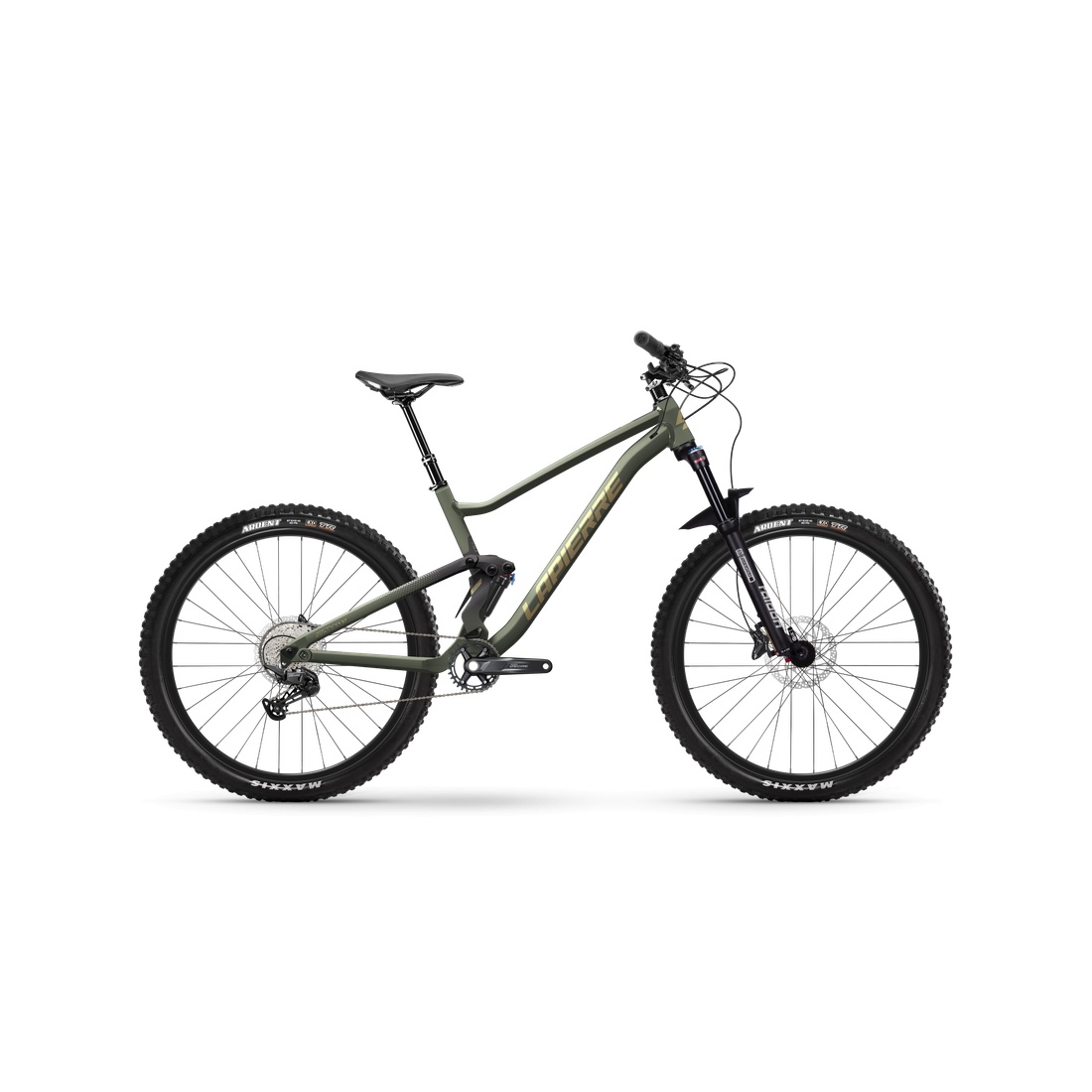

LAPIERRE ZESTY TR 3.7 2026

Frame & Suspension

• Fork: Suntour Raidon 32 RLR DS 15x110 120 mm

• Frame: HIGH Aluminium, Men

• Shock: Lapierre Metric 165x45 mm

Handlebar & Saddle

• Handlebar diameter: 31.8 mm

• Handlebar material: Aluminium

• Handlebar rise: 15 mm

• Handlebar width: 760 mm

• Seatpost material: Aluminium

• Seatpost travel: 80 mm

• Seatpost length: 35 mm

• Grip: Lapierre DD34 Lock-on

• Handlebar: Lapierre flat Alloy 6061DB, Ø31.8 mm, Rise 15 mm

• Headset: FSA Integrated Orbit Zero stack

• Saddle: Selle Royal Vivo

• Seatpost: Lapierre Dropper, Ø31.6 mm, travel 80 mm

• Stem: Lapierre Alloy CNC, 0°, L 35 mm

Geometry

• Bottom bracket width: 25 mm

• Chainstay length: 425 mm

• Fork offset: 525 mm

• Total fork length: 44 mm

• Head tube angle: 66.5°

• Head tube length: 95 mm

• Reach: 385 mm

• Stack: 561 mm

• Seat tube angle: 74°

• Seat tube length: 370 mm

• Top tube length: 546 mm

• Wheelbase: 1132.6 mm

Wheels & Components

• Wheel size: 27.5’’

• Front hub: Shimano MT400 Boost 15x110, 32H Centerlock

• Rear hub: Shimano MT400 Boost 12x148, 32H Centerlock

• Rims: Rodi Ryot 25x584, 32H Tubeless Ready

• Front tire: Maxxis Ardent EXO TR 62-584

• Rear tire: Maxxis Forekaster EXO TR

Braking System

• Rear brake mount: Post Mount

• Front brake: Shimano MT401, hydraulic, 2 pistons, 180 mm

• Rear brake: Shimano MT401, hydraulic, 2 pistons, 180 mm

• Brake levers: Shimano BL-MT401

• Brake rotors: Shimano SM-RT30 180 mm, Centerlock

Drivetrain

• Cassette: Shimano Deore CS-M5100-11, 11-51T, HG

• Crankset: Shimano Deore M5100, 32T

• Crank length: 170 mm

• Crank type: Single

• Speeds: 11

• Bottom bracket: Shimano PressFit MT800

• Chain: KMC X11 black/silver 11s

• Chain guide: Lapierre 1x

• Rear derailleur: Shimano Deore RD-M5100 11s, SGS, Shadow+

• Right shifter: Shimano Deore M5100 11s Triggershift

• Pedals: NW-91K
