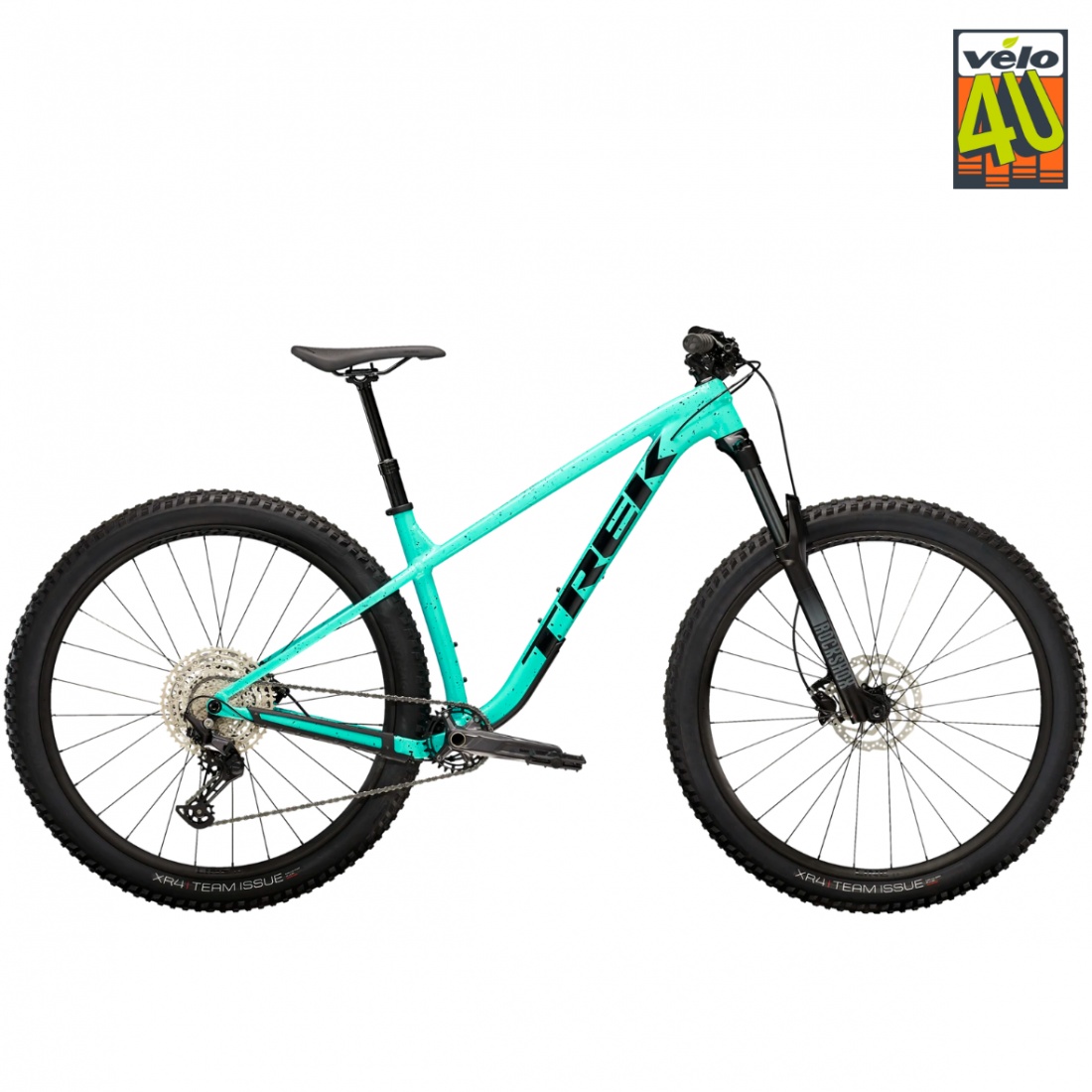

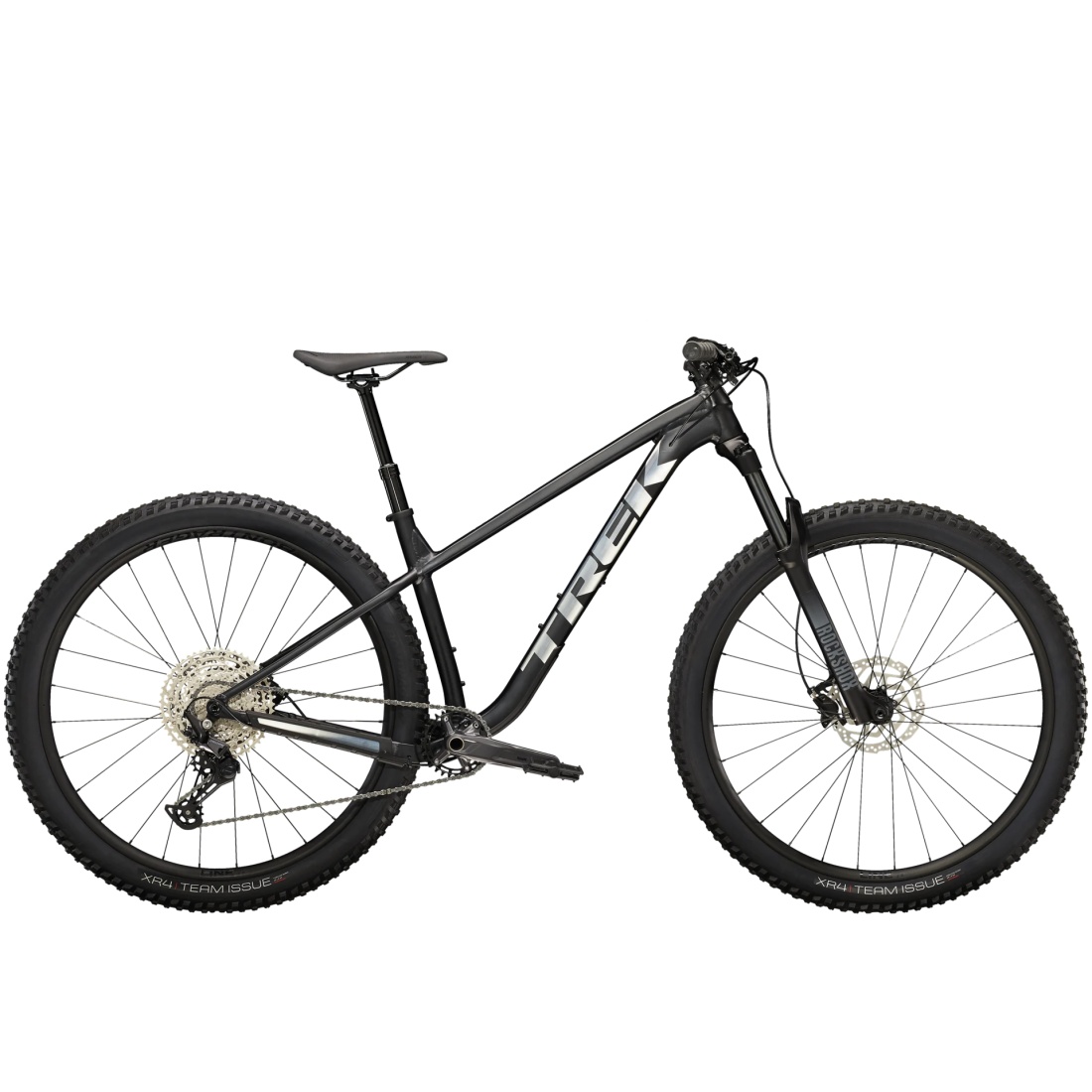

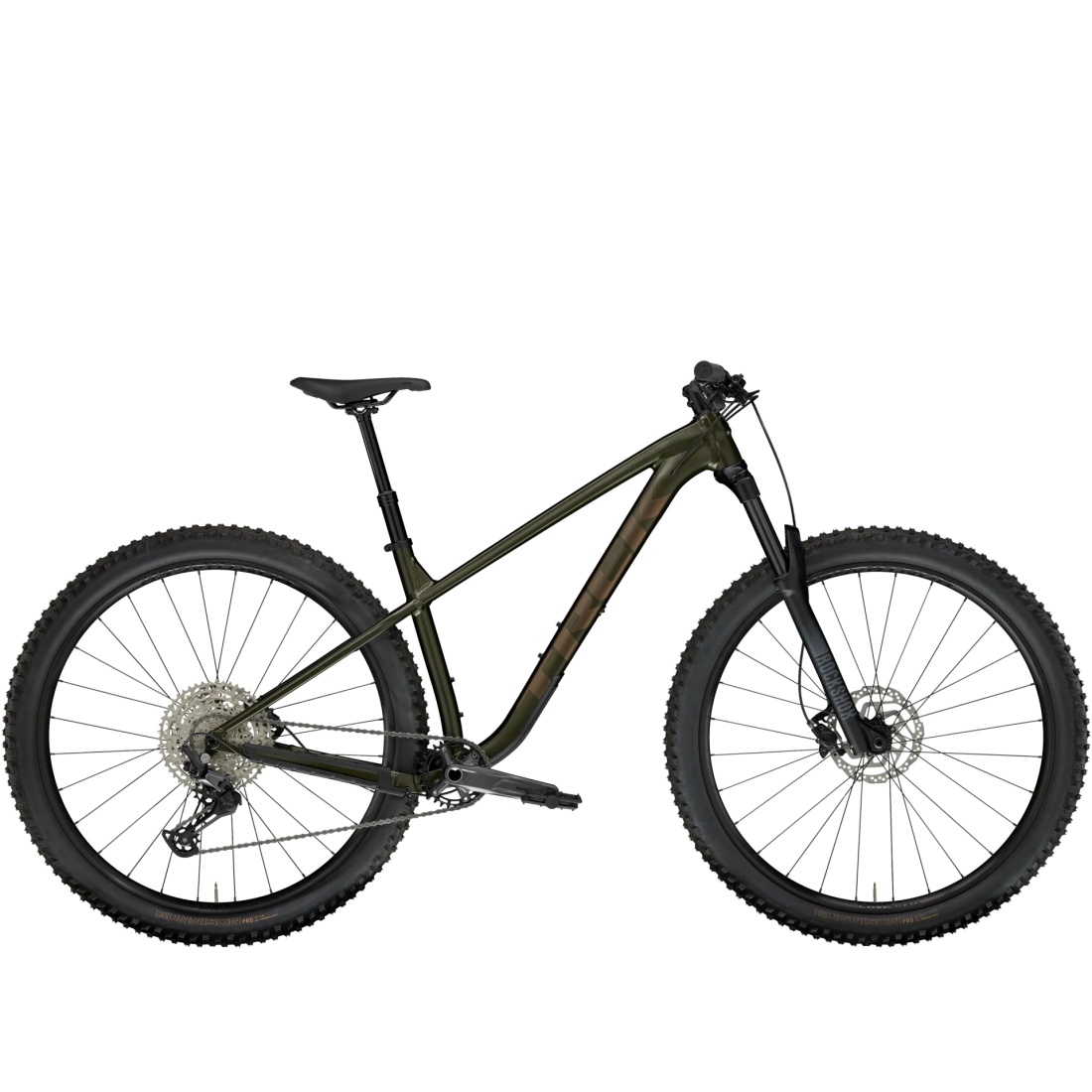

TREK ROSCOE 7 2025

Frame

• Alpha Gold Aluminum
• Tapered head tube
• Internal routing for derailleur cables and dropper post
• ISCG 05 compatibility
• Threaded bottom bracket
• Boost148, 12 mm thru-axle

Fork

• Size XS:
  RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 37 mm offset, Boost110, Maxle Stealth, 120 mm travel

• Sizes S, M, ML, L, XL:
  RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 140 mm travel

• Maximum compatible fork travel: Refer to the maintenance manual

Hubs

• Front: Shimano TC500 aluminum alloy, Centerlock, 110x15 mm thru-axle
• Rear: Shimano TC500 aluminum alloy, Centerlock, 148x12 mm thru-axle
• Rear Axle: Bontrager Switch thru-axle with removable lever

Wheels

• Rim: Bontrager Line TLR 30, Tubeless Ready, 28-hole, Presta valve
• Spokes: 14 g stainless steel, black

Tires

• Size XS: Bontrager Gunnison Pro XR, tubeless-ready, dual-compound, aramid bead, 60 tpi, 27.5x2.60”
• Sizes S, M, ML, L, XL: Bontrager Gunnison Pro XR, tubeless-ready, dual-compound, aramid bead, 60 tpi, 29x2.60”

Tire Components:

• Bontrager TLR sealant, 177 ml
• Bontrager TLR rim strip
• Maximum tire size: Frame: 29x2.60” (XS: 27.5x2.60”); Fork: see manufacturer

Drivetrain

• Shifter: Shimano Deore M6100, 12-speed

• Rear Derailleur: Shimano Deore M6100, long cage

• Crankset:

  • XS, S, M, ML, L: Shimano MT511, steel 30T chainring, 52 mm chainline, 170 mm length
  • XL: Shimano MT511, steel 30T chainring, 52 mm chainline, 175 mm length

• Bottom Bracket: Shimano SM-BB52, threaded, 73 mm

• Cassette: Shimano Deore M6100, 10-51, 12-speed

• Chain: Shimano Deore M6100, 12-speed

Pedals: VP-536, platform, nylon
Maximum chainring size: 1x: 32T (52 mm chainline), 34T (55 mm chainline)

Saddle

• Bontrager Verse P3, steel rails
• Bontrager Verse Short, stainless steel rails

Dropper Post

• XS, S: TranzX JD-YSP18, 100 mm travel, 361 mm length
• M: TranzX JD-YSP18, 130 mm travel, 425 mm length
• ML, L, XL: TranzX JD-YSP18, 150 mm travel, 470 mm length

Handlebar

• XS, S: Bontrager alloy, 15 mm rise, 750 mm width
• M, ML, L, XL: Bontrager Rhythm Comp alloy, 15 mm rise, 780 mm width

Grips: Bontrager XR Trail Comp, nylon lock-on

Stem

• XS, S: Bontrager Comp, 35 mm length, 7 degrees
• M, ML, L, XL: Bontrager Comp, Blendr compatible, 50 mm length, 7 degrees

Headset: FSA IS-2, 1.125” top, 1.5” bottom

Brakes

• Brakes: Shimano MT200 hydraulic disc brakes
• Rotors: Shimano RT10, Centerlock, 180 mm
• Maximum rotor size: Frame: 180 mm; Fork: see manufacturer

Weight

• M size: 14.14 kg (with TLR sealant, without inner tubes)
• Maximum weight limit: 136 kg (bike, rider, and cargo)
