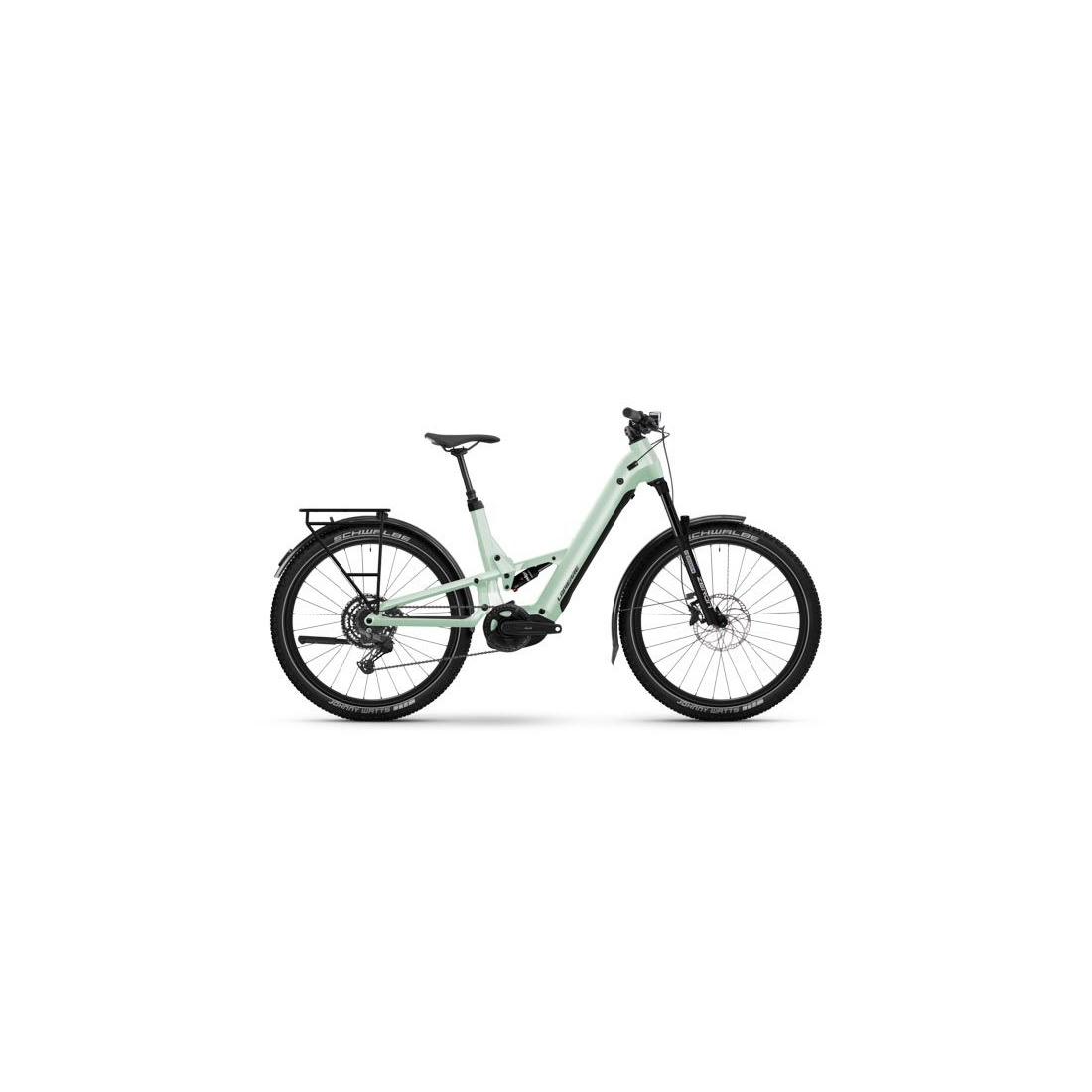

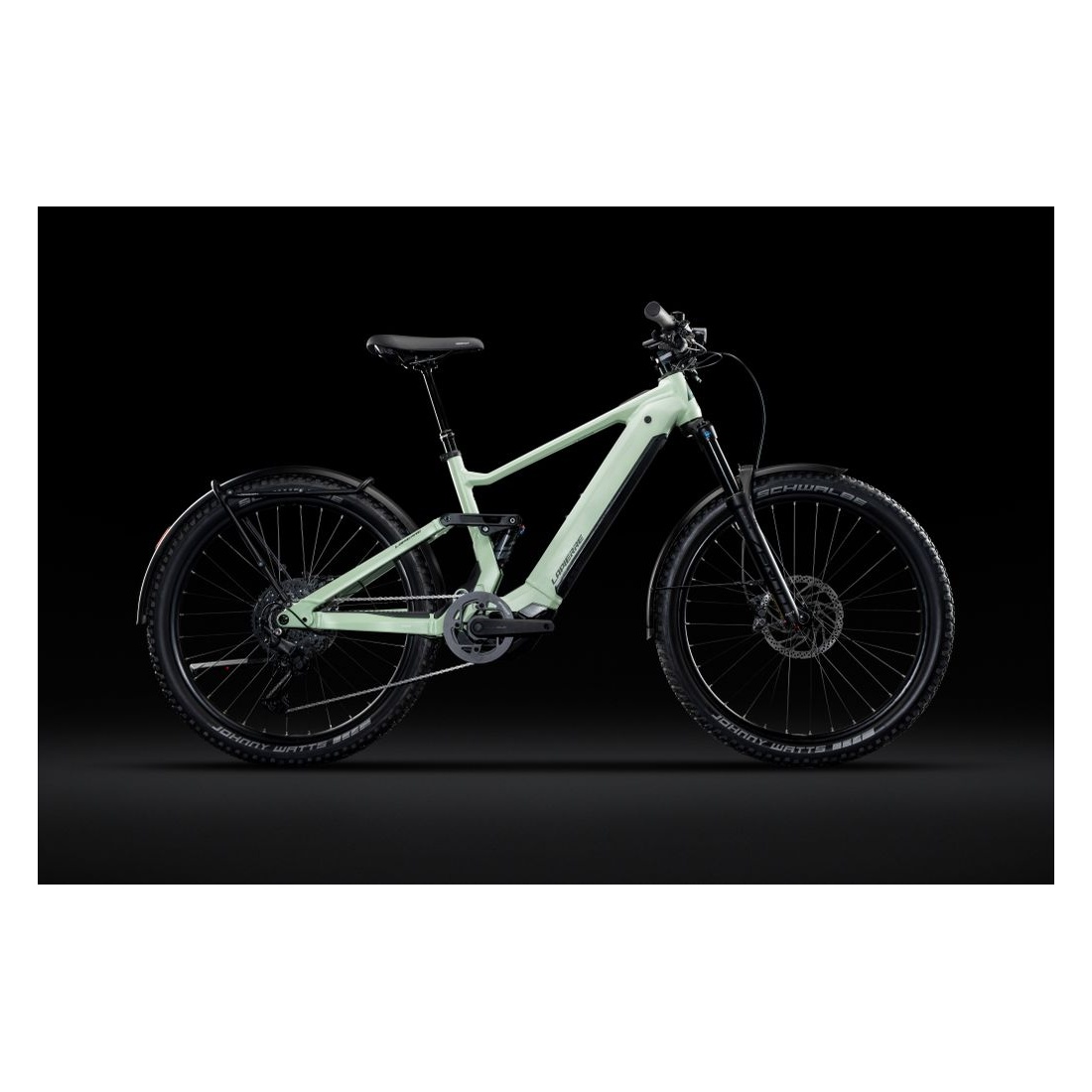

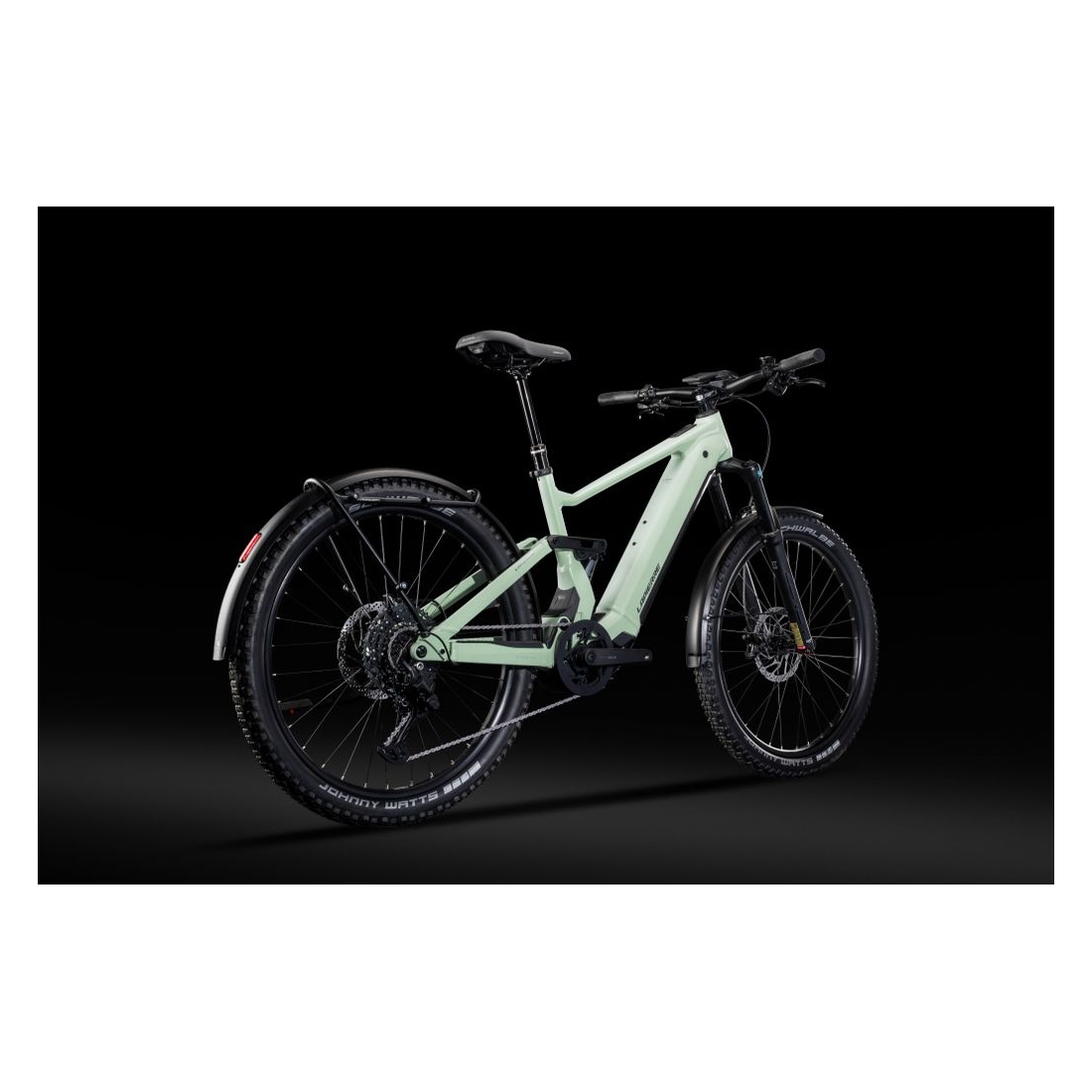

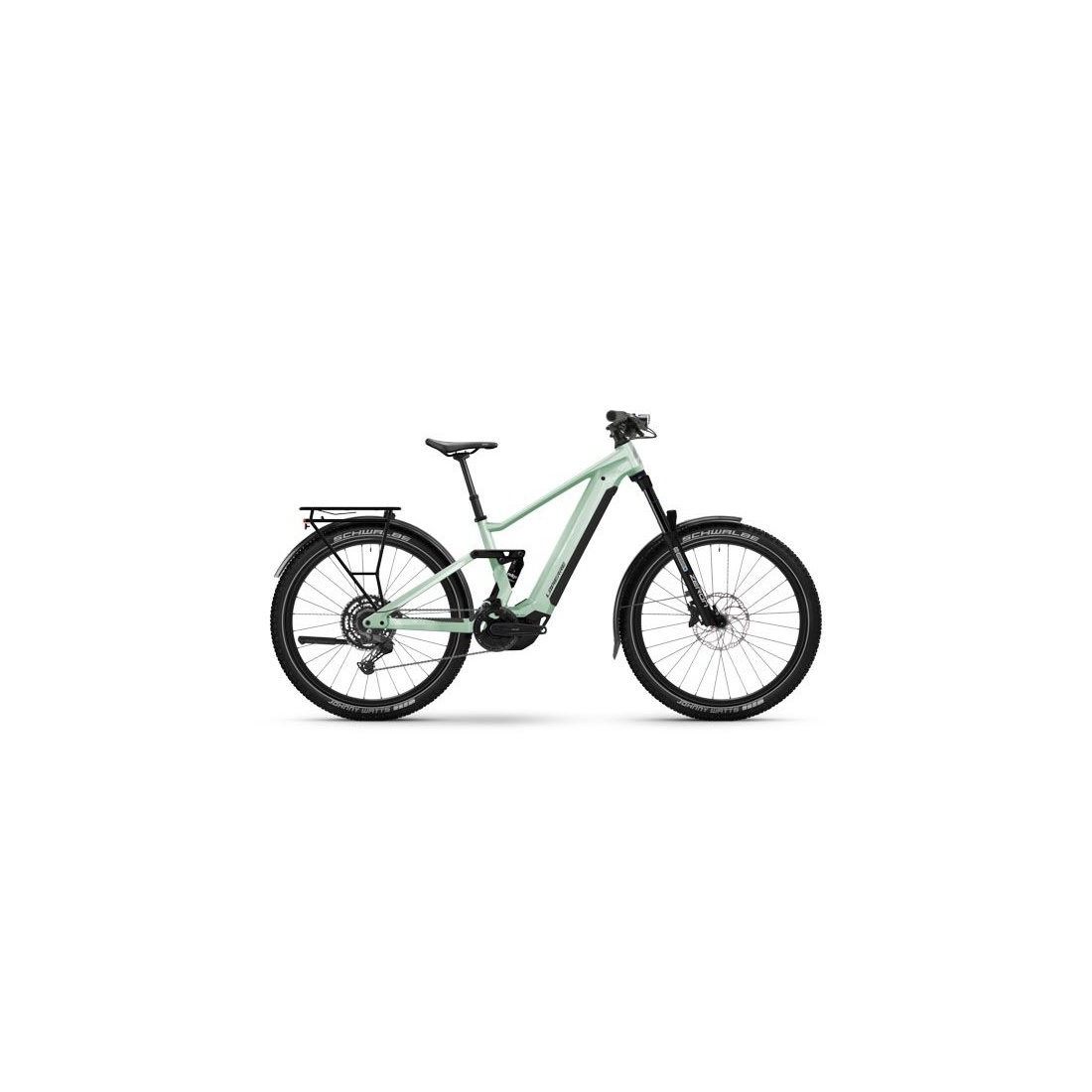

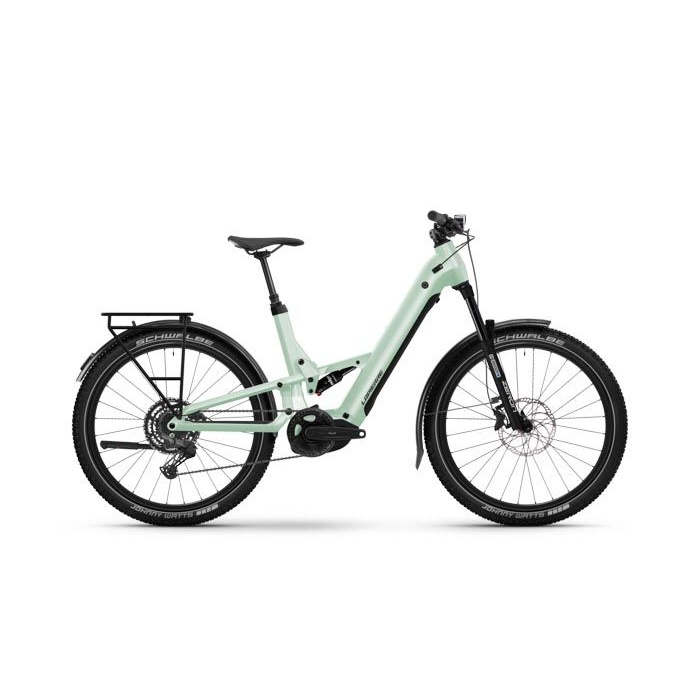

LAPIERRE E-EXPLORER FS 7.6 2025

Frame & More

• Sizes: S, M, L, XL

• Maximum load: 130 kg

• Fork type: Suspension

• Fork: Suntour, SF25 Zeron 36X EQ Air, 15x110, 27.5", 140 mm

• Frame: HIGH, Aluminum, Men

Handlebar & Saddle

• Handlebar material: Aluminum

• Seatpost material: Aluminum

• Grips: Lapierre

• Handlebar: Lapierre, Flat bar, Thirty One 6061DB, Rise: 15 mm, Ø: 31.8 mm

• Headset: Acros, Semi-integrated, Integrated ZS56/ZS56 Block Lock

• Saddle: Selle Royal, MTB, Essenza Plus Moderate

• Seatpost: JD, Telescopic, YSP18, Ø: 31.6 mm, Travel: 100 mm + Shimano Lever

• Stem: Lapierre, Non-adjustable, Thirty One Alloy, 0°, Ø: 31.8 mm, Length: 55 mm

E-bike Components

• Battery capacity: 600 Wh

• Battery position: Down tube

• Motor torque: 85 Nm

• Motor position: Center

• Battery: Bosch

• Charger: Bosch, Fast charger, 4A

• Display: Bosch, Intuvia 100

• Motor: Bosch, Performance Line CX

Lighting

• Front light: Trelock, LS 800 Light Hammer 60

• Rear light: Trelock, Integrated Trelock Rear Light

Luggage Rack

• Maximum rear load: 25 kg

• Rear rack: Stronglight, S-Carus MIK Carrier

Wheels & Components

• Wheel size: 27.5"

• Front hub: Shimano, TC500, Boost 15x110, 32H, Centerlock

• Rear hub: Shimano, TC500, Boost 12x148, 32H, Centerlock, HG driver

• Front mudguard: Stronglight, Dopar 69 Alloy double wall

• Rear mudguard: Stronglight, Dopar 69 Alloy double wall

• Rims: Ryde, Rival30, 32H, 30-584 Disc Rim

• Tires: Schwalbe, Johnny Watts Performance, DD, RaceGuard, 67 EPI, 65-584

Braking System

• Rear brake mount: Post Mount

• Front brake: Shimano, Hydraulic disc, M4100, 4 pistons, 203 mm

• Rear brake: Shimano, Hydraulic disc, M4100, 2 pistons, 203 mm

• Brake lever: Shimano, BL-M4100

Drivetrain

• Cassette: Shimano, CUES CS-LG300-10, 10–48T, HG

• Chainring: 38T

• Crankset type: Single

• Speeds: 10

• Chain: Shimano, CUES LG500 9/10/11s

• Crankset: XLC, Crank + FSA GEN5 Chainring w/ Bashguard

• Rear derailleur: Shimano, CUES RD-U6000 10/11s, Shadow+

• Left shifter: Shimano, Trigger shift, CUES U6000, 10-speed

• Right shifter: Shimano, Trigger shift, CUES SL-U6000-10R

• Pedals: XLC, by VP
