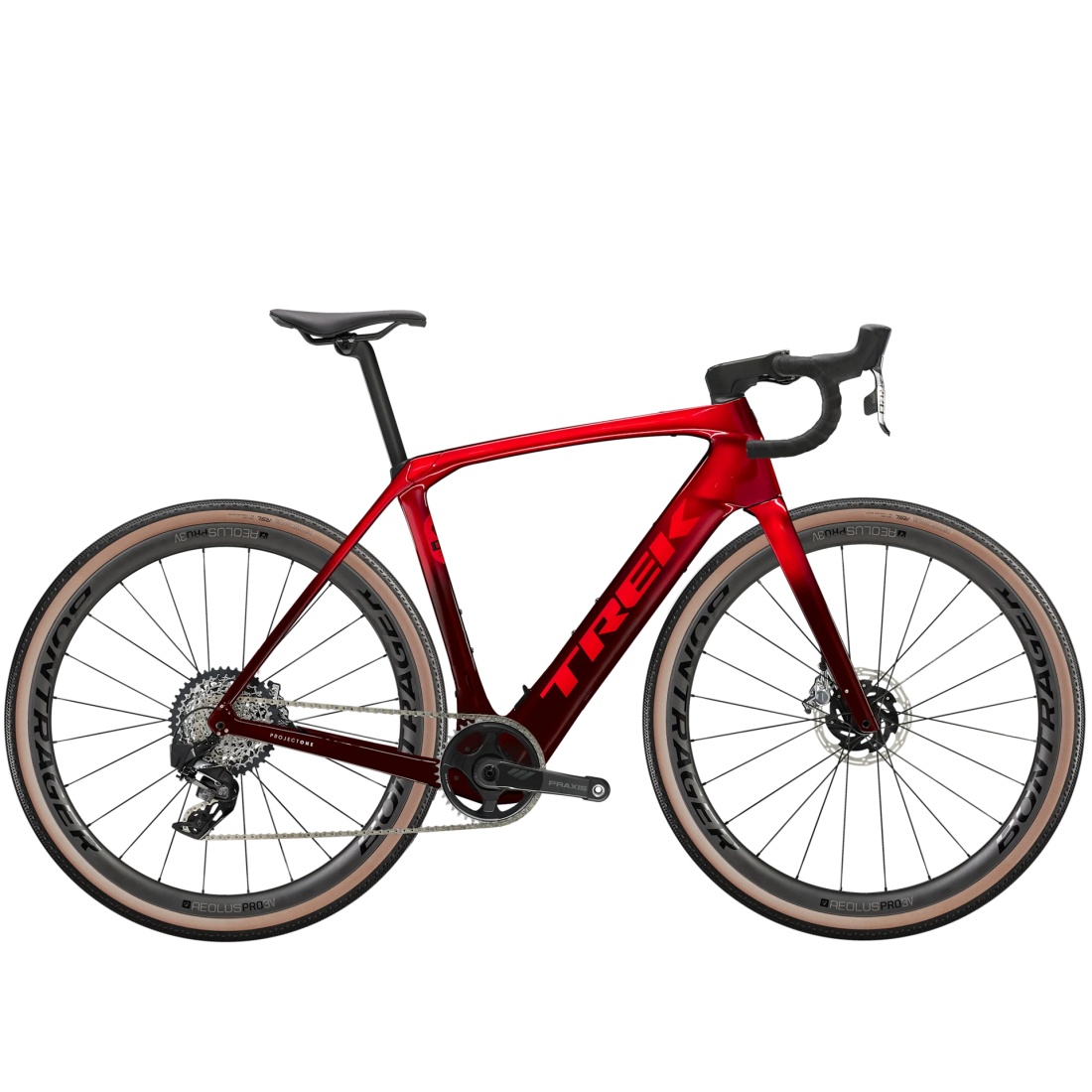

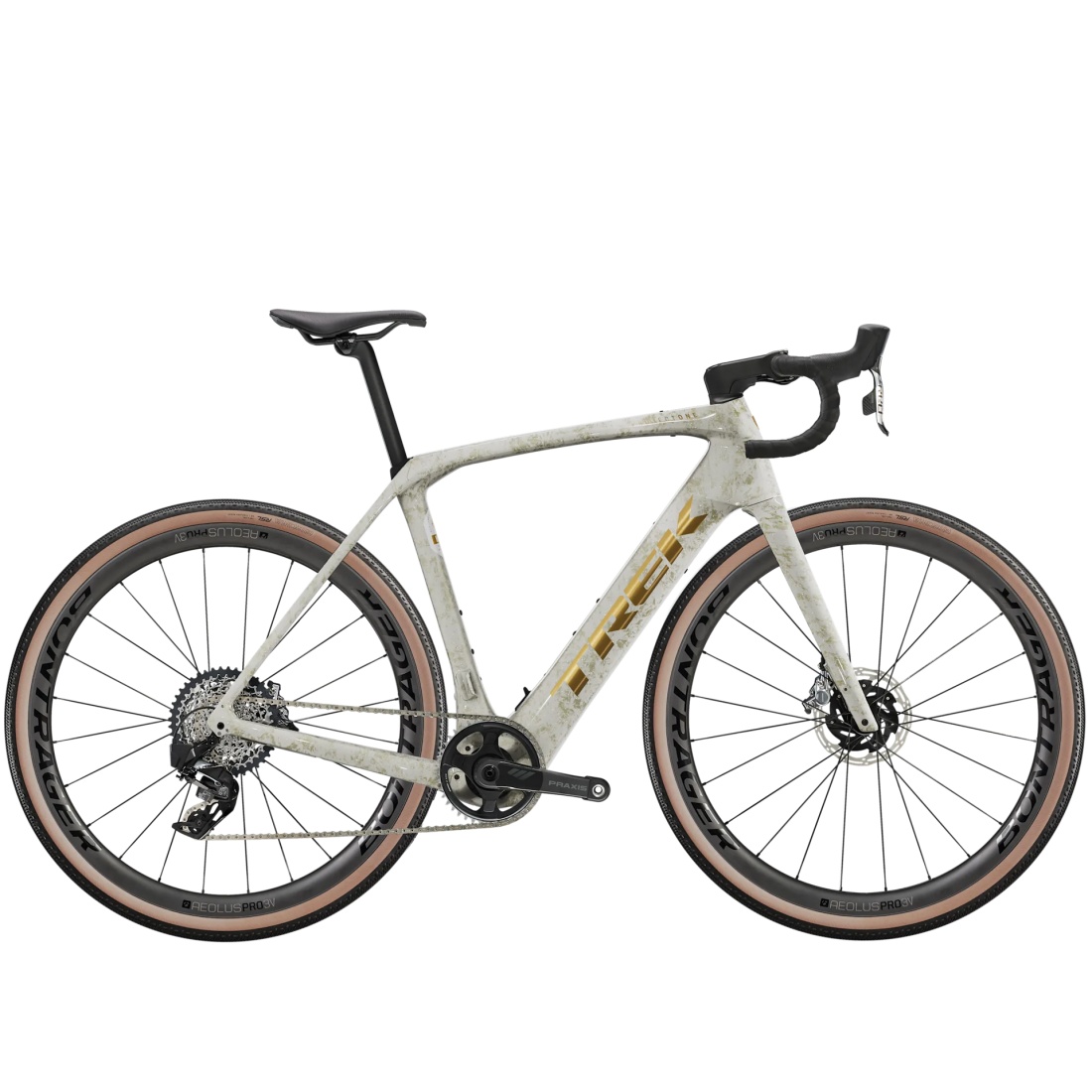

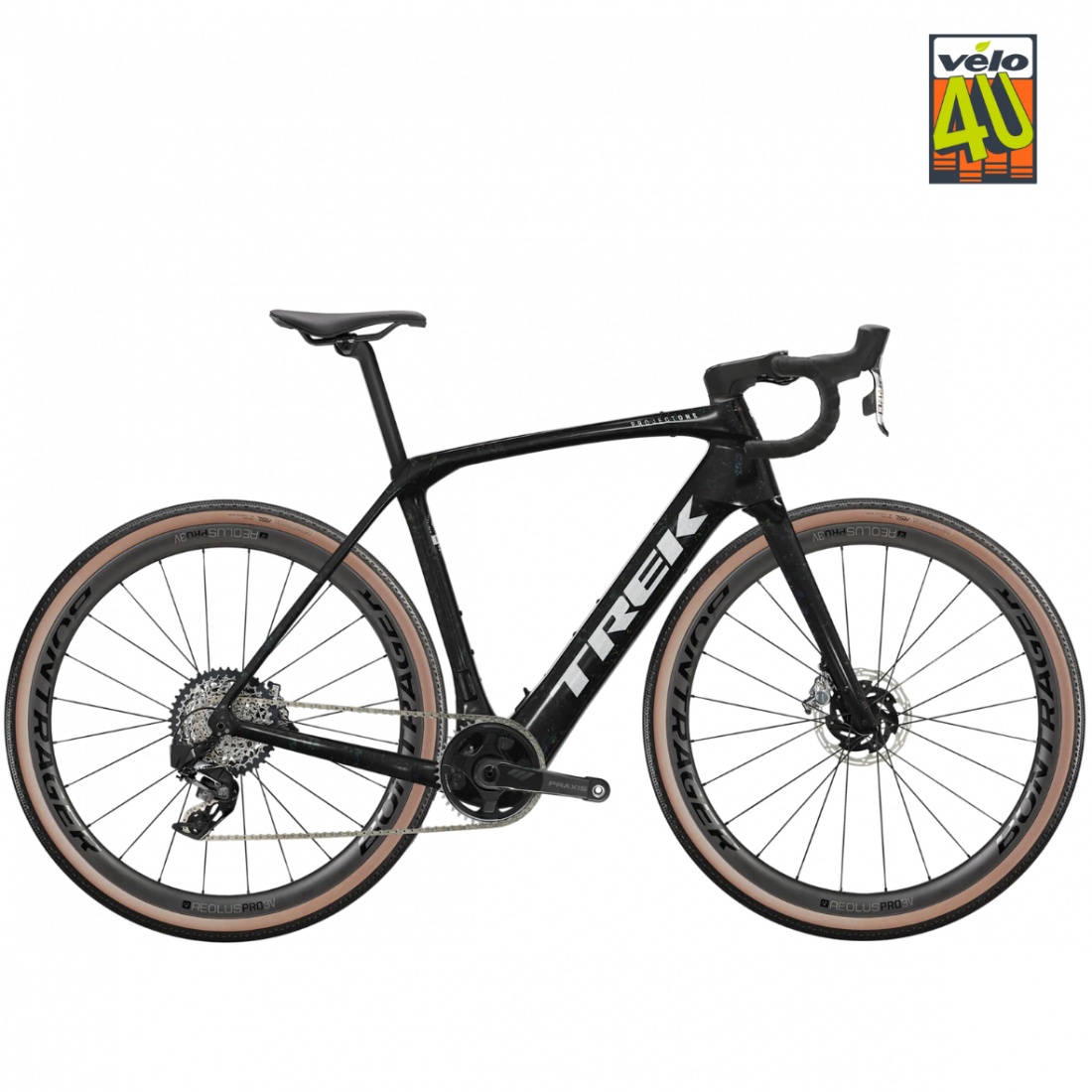

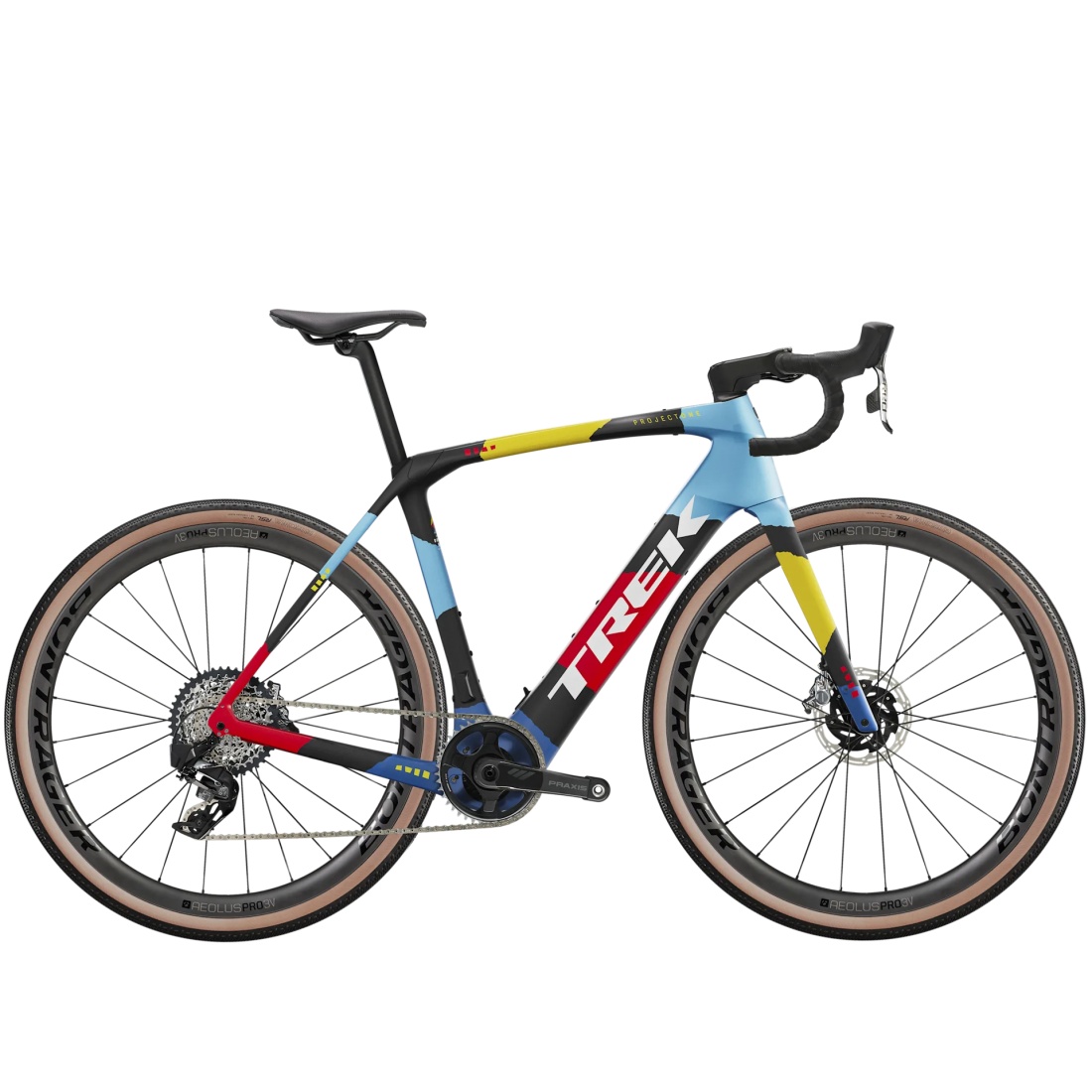

TREK DOMANE+ SLR8 AXS 2025

Frame
OCLV 800 Series Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal cable routing, Flat-Mount disc, fender mounts, 142x12 mm thru-axle

Fork
Domane+ carbon, carbon tapered steerer, internal brake cable routing, fender mounts, Flat-Mount disc brakes, 12x100 mm thru-axle

Maximum Weight
This bike has a maximum weight limit (including bike, rider, and cargo) of 125 kg

Battery
TQ 360 Wh

Charger
TQ 4A charger

Display
TQ LED screen with Bluetooth and ANT+ connectivity

Motor
TQ-HPR50, 50 Nm torque, 250 watts continuous power, 300 watts peak power

Shifter
SRAM RED eTap AXS, 12-speed

Rear Derailleur
SRAM RED eTap AXS, 36-tooth max compatible

Crankset

• Size 50, 52: Praxis carbon, 170 mm
• Size 54, 56: Praxis carbon, 172.5 mm
• Size 58, 60, 62: Praxis carbon, 175 mm

Chainring
SRAM X-SYNC, 42-tooth, alloy

Cassette
SRAM XG-1271, 10-44, 12-speed

Chain
SRAM RED D1, 12-speed

Max Chainring Size
1x: 46t, 2x: 52/36

Front Wheel
Bontrager Aeolus Pro 3, OCLV Carbon, Tubeless Ready, 25 mm width, 100x12 mm thru-axle

Rear Wheel
Bontrager Aeolus Pro 3, OCLV Carbon, Tubeless Ready, 25 mm width, 142x12 mm thru-axle

Front and Rear Thru-Axle
Bontrager Switch thru-axle with removable lever

Tire
Bontrager GR1 Team Issue, tubeless-ready, Inner Strength Casing, aramid bead, 120 tpi, 700x40 mm

Tire Accessories
Bontrager TLR sealant, 177 ml

Rim Strip
Bontrager TLR

Max Tire Size
40 mm without fenders, 35 mm with fenders

Saddle

• Size 50, 52: Verse Short Pro, carbon rails, 155 mm width
• Size 54, 56, 58, 60, 62: Verse Short Pro, carbon rails, 145 mm width

Seatpost

• Size 50, 52, 54, 56: KVF carbon aero seatpost, 20 mm offset, 280 mm length
• Size 58, 60, 62: KVF carbon aero seatpost, 20 mm offset, 320 mm length

Handlebar

• Size 50, 52: Bontrager Pro IsoCore VR-SF, 40 cm
• Size 54, 56: Bontrager Pro IsoCore VR-SF, 42 cm
• Size 58, 60, 62: Bontrager Pro IsoCore VR-SF, 44 cm

Bar Tape
Bontrager Supertack Perf

Stem

• Size 50: Trek RCS Pro, -7 degrees, 80 mm
• Size 52, 54: Trek RCS Pro, -7 degrees, 90 mm
• Size 56, 58: Trek RCS Pro, -7 degrees, 100 mm
• Size 60, 62: Trek RCS Pro, -7 degrees, 110 mm

Brake Disc
SRAM CenterLine X, centerlock, rounded edge, 160 mm

Disc Brake Features
Maximum disc size: 180 mm front, 160 mm rear
