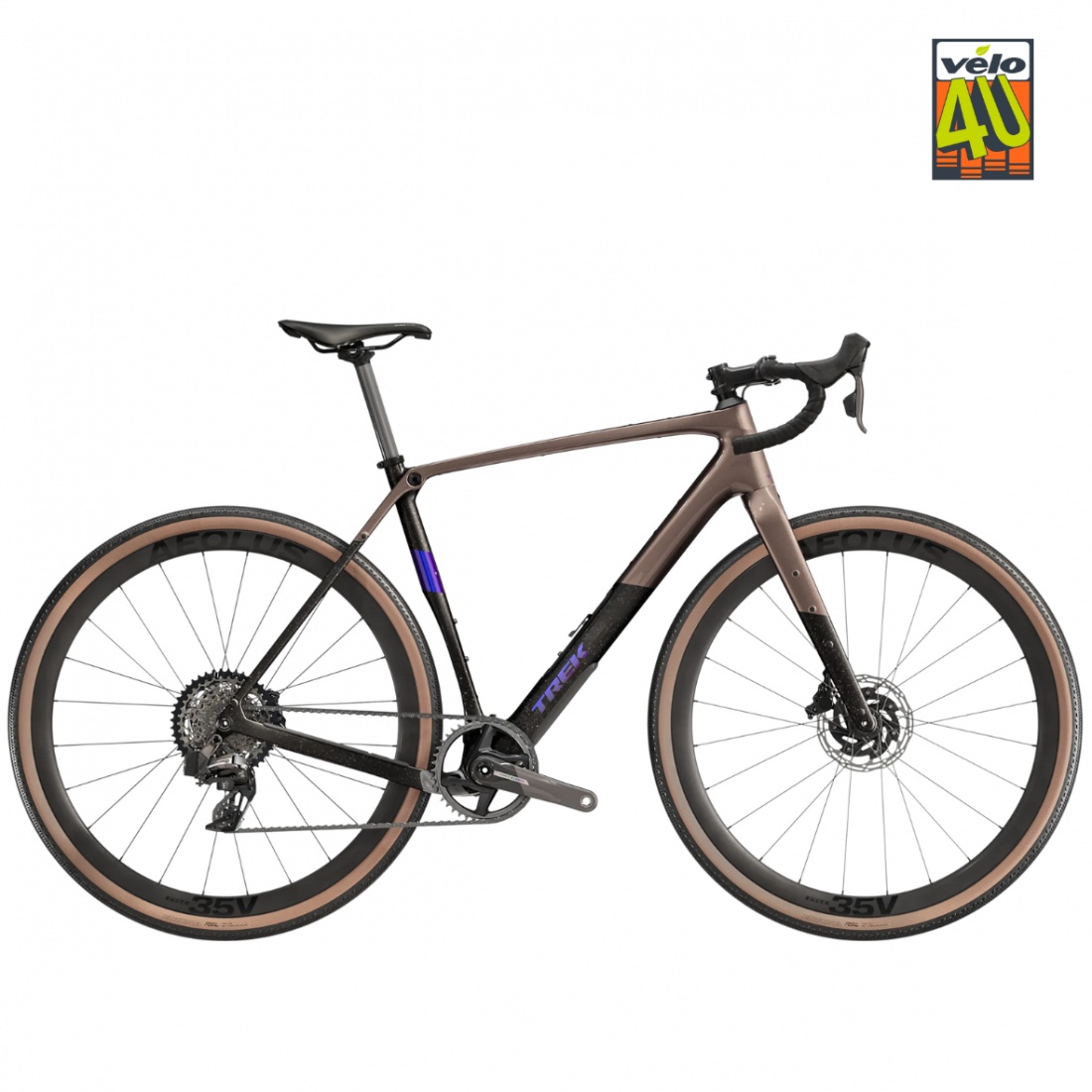

TREK CHECKPOINT SL 7 AXS 2025

Description in English

Frame: OCLV Carbon Series 500 with IsoSpeed technology, integrated storage compartment in the downtube, hidden mounts for fenders, racks, and frame bags, invisible internal cable routing, T47 bottom bracket, Flat-Mount disc, integrated chain guard, removable front derailleur mount, UDH-compatible, 142x12 mm splined thru-axle.

Fork: Checkpoint full carbon fork with tapered steerer, fender mounts, triple rack mounts, flat mount disc, and 12x100 mm chamfered thru-axle.

Maximum Fork Travel Compatibility: 40 mm (XS compatible with rigid fork only).

Weight: 9.00 kg (size ML, with TLR sealant, tubeless-ready, without inner tubes).

Maximum Weight Limit: Total weight limit of 125 kg, including the bike, rider, and cargo.

Shifters: SRAM Force AXS D2, 12-speed for all sizes. Rear derailleur SRAM Force XPLR AXS D2 with a maximum cog of 44 teeth.

Crankset: SRAM Force 1 D2, 40 teeth, with crank arm length varying by size (165 mm for XS and S up to 175 mm for XL).

Bottom Bracket: SRAM DUB, T47 threaded, internal bearing.

Cassette: SRAM XG-1271, 10-44, 12-speed.

Chain: SRAM Force, 12-speed.

Wheels: Bontrager Aeolus Elite 35V carbon, Tubeless Ready, 35 mm rim depth, with thru-axles (front 100x12 mm, rear 142x12 mm) and removable lever.

Tires: Bontrager Girona RSL GR, Tubeless Ready, 700x42 mm with puncture protection.

Maximum Tire Size: 50 mm without fenders, 42 mm with fenders.

Saddle: Verse Short Elite with hollow magnesium rails, width varies by size (155 mm for XS and S, 145 mm for M, ML, L, XL).

Seatpost: Bontrager carbon, 27.2 mm, 8 mm offset, 330 mm length.

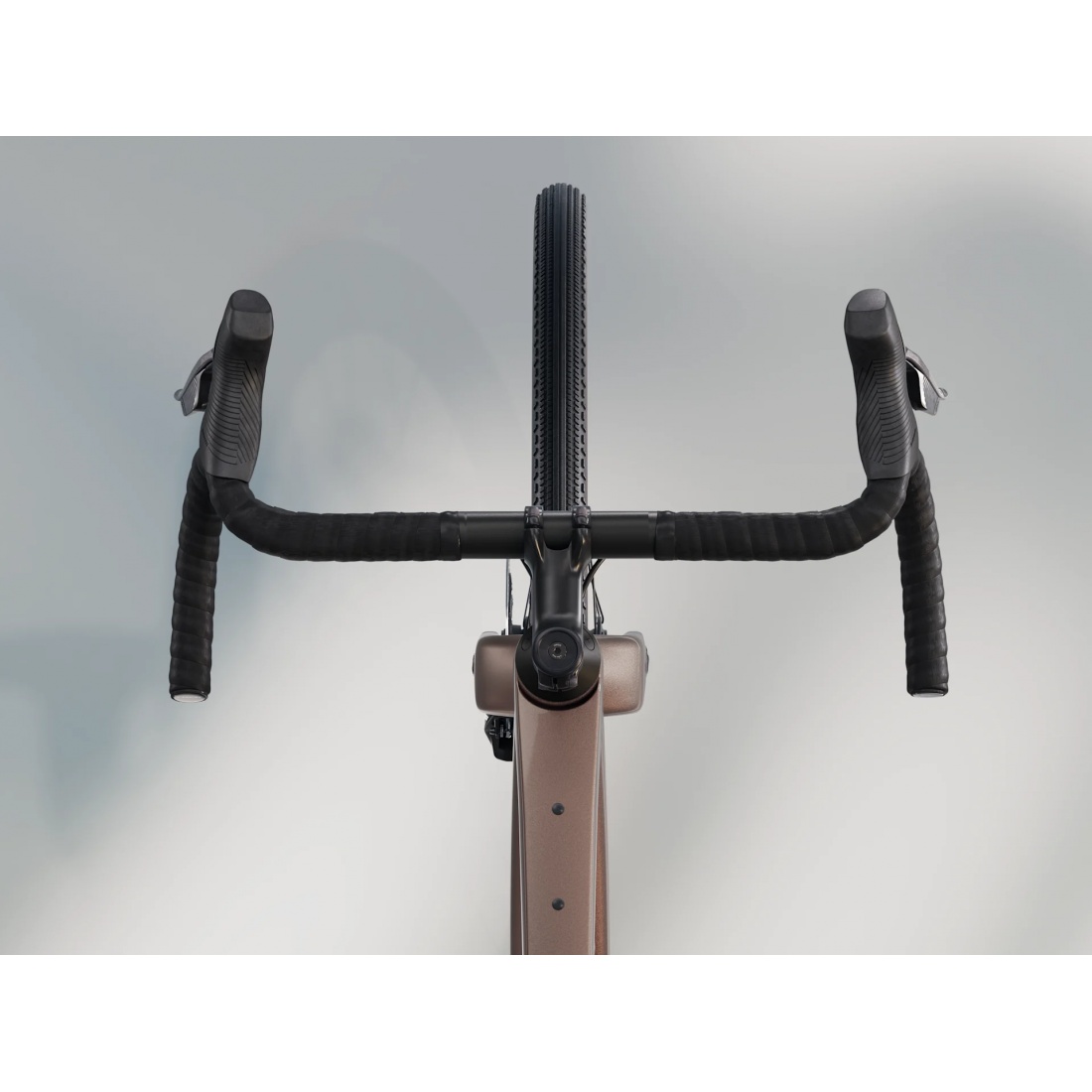

Handlebar: Bontrager Pro Gravel alloy, width varies from 40 to 46 cm depending on size.

Stem: Bontrager Pro, Blendr compatible, 7-degree angle, length varies from 60 to 100 mm by size.

Brakes: SRAM Force AXS hydraulic disc brakes with CenterLine X rotors of 160 mm (maximum rotor size of 180 mm front and rear).
