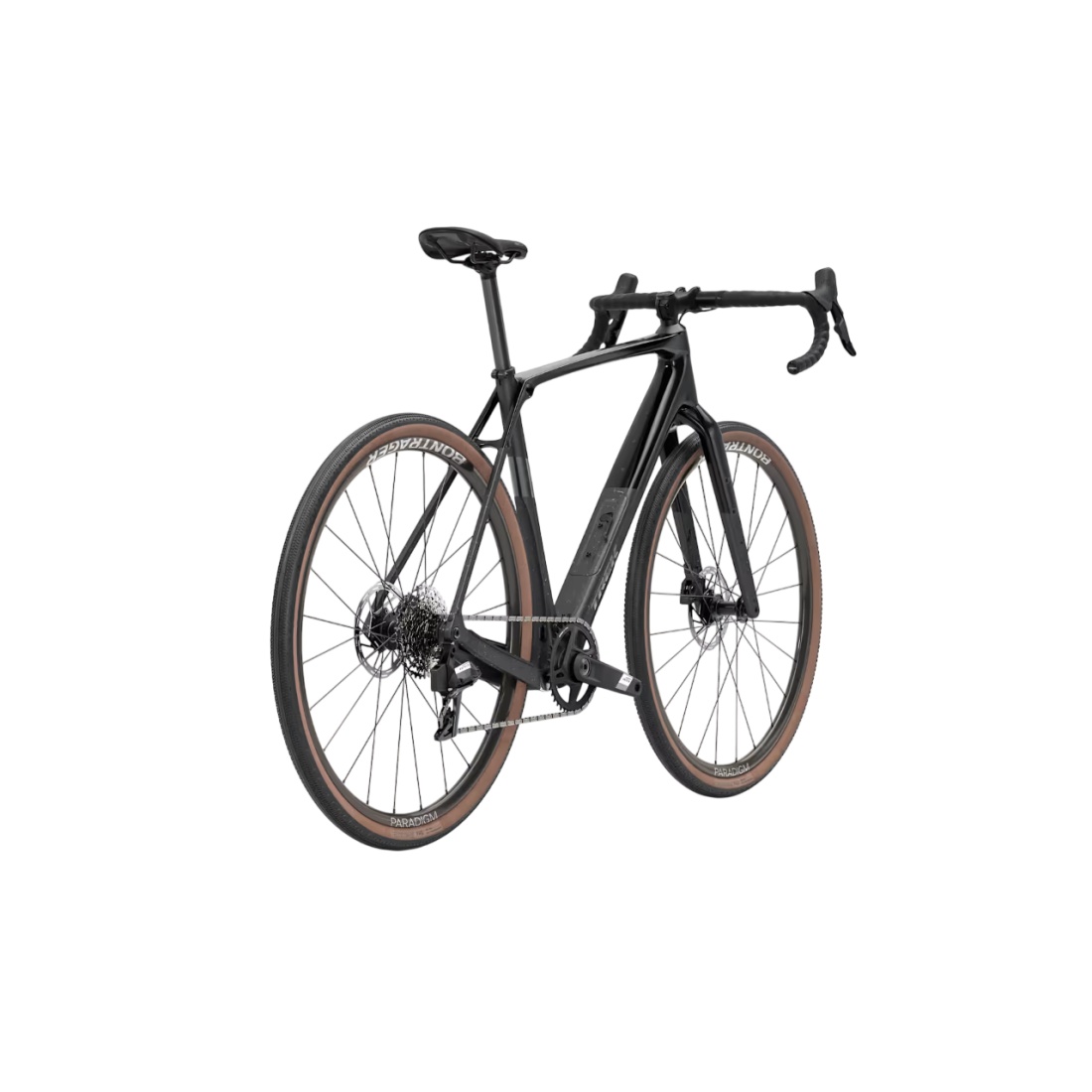

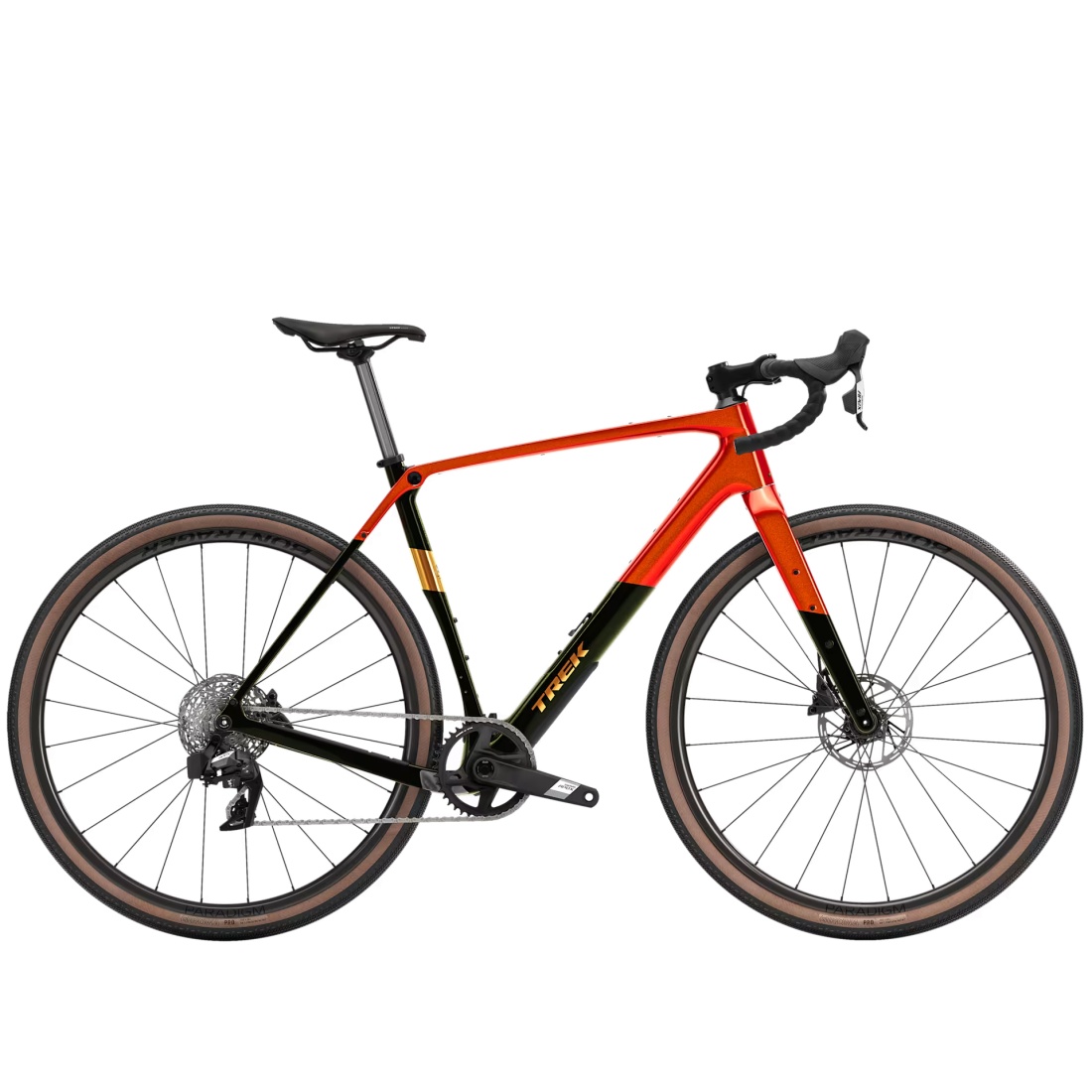

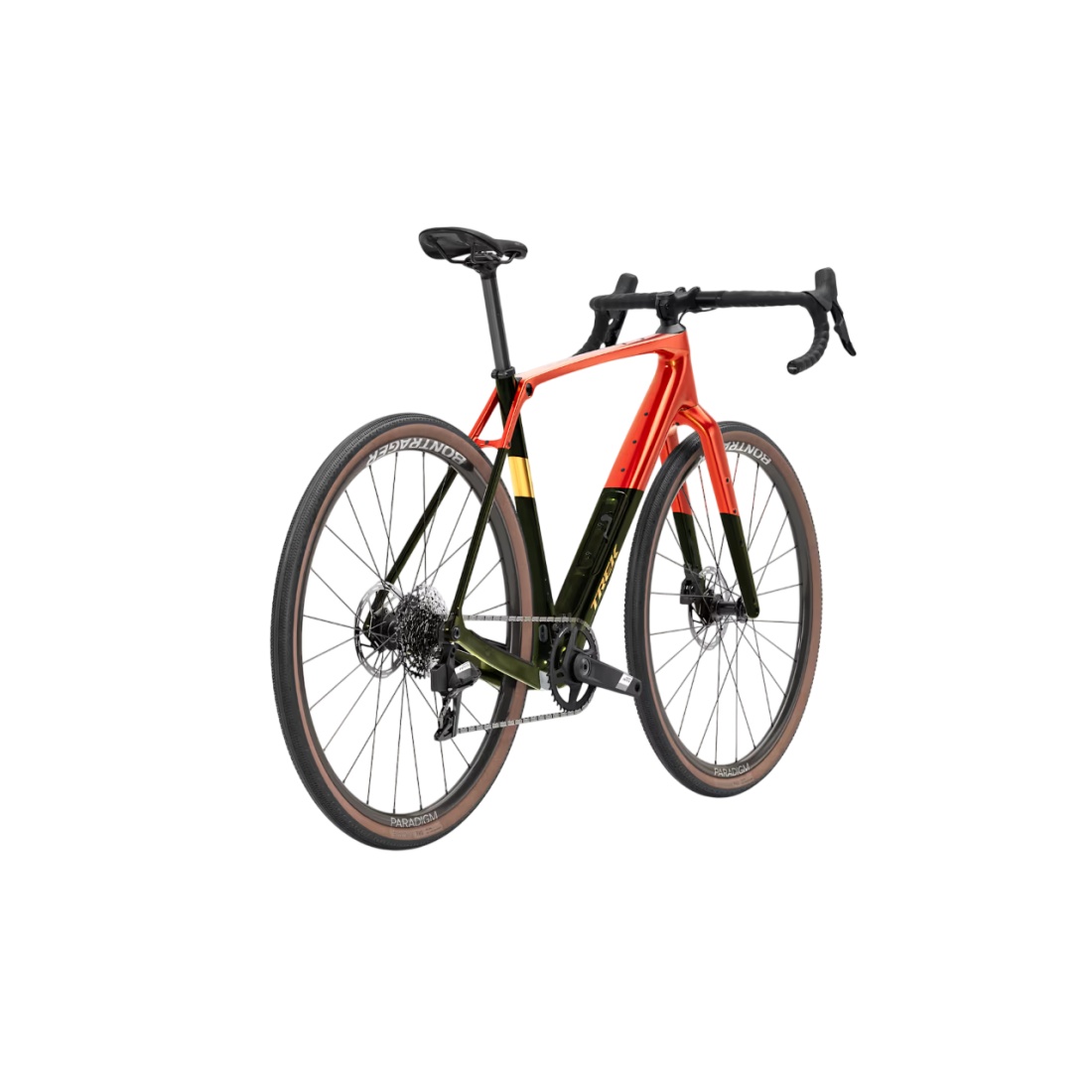

TREK CHECKPOINT SL 5 AXS 2026

Frame: OCLV Series 500 Carbon, IsoSpeed, downtube storage compartment, hidden fender mounts, rack mounts, integrated frame bag mounts, RCS headset, fully internal cable routing, T47 bottom bracket, Flat-Mount disc brakes, integrated chain guard, removable front derailleur mount, UDH, 142×12 mm grooved thru-axle

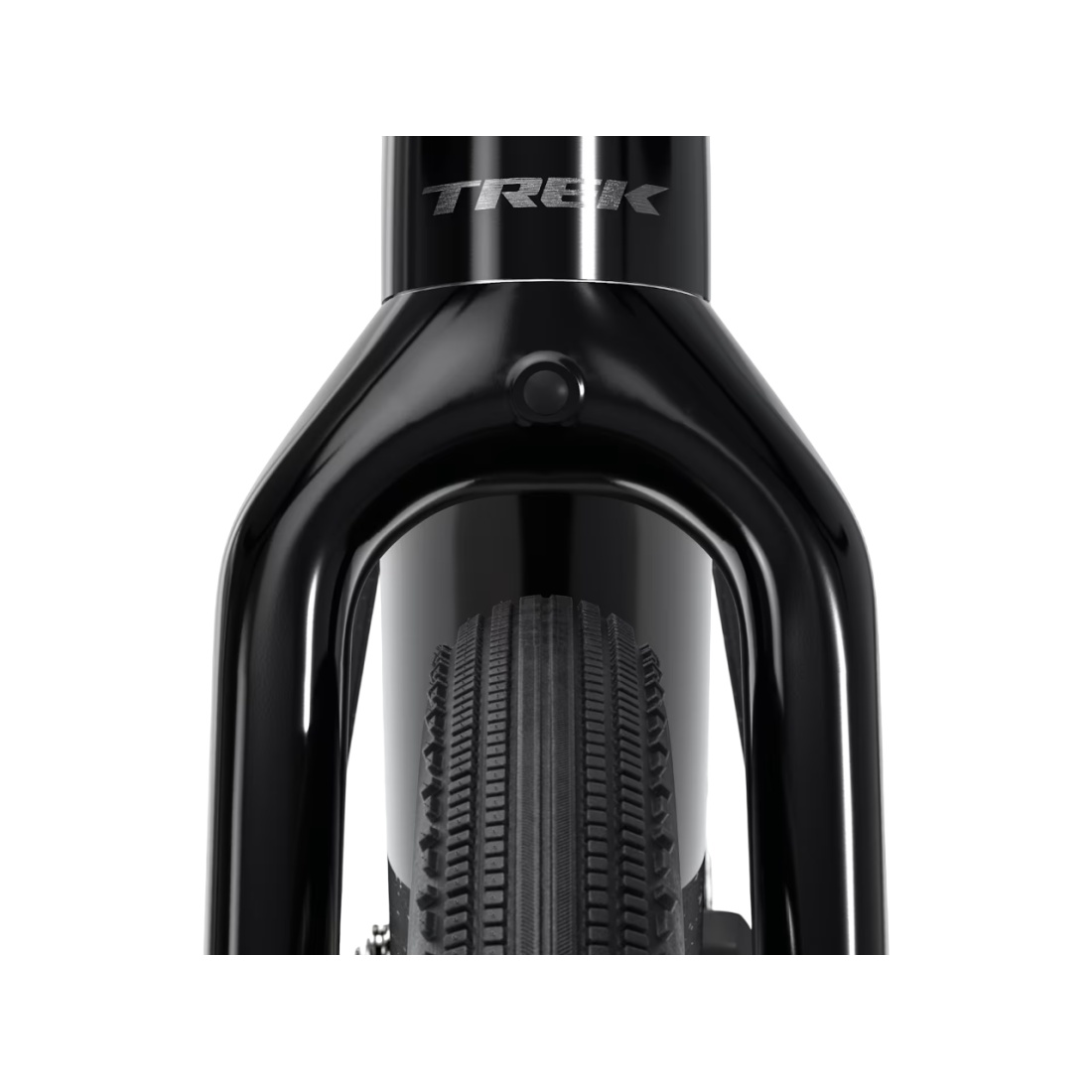

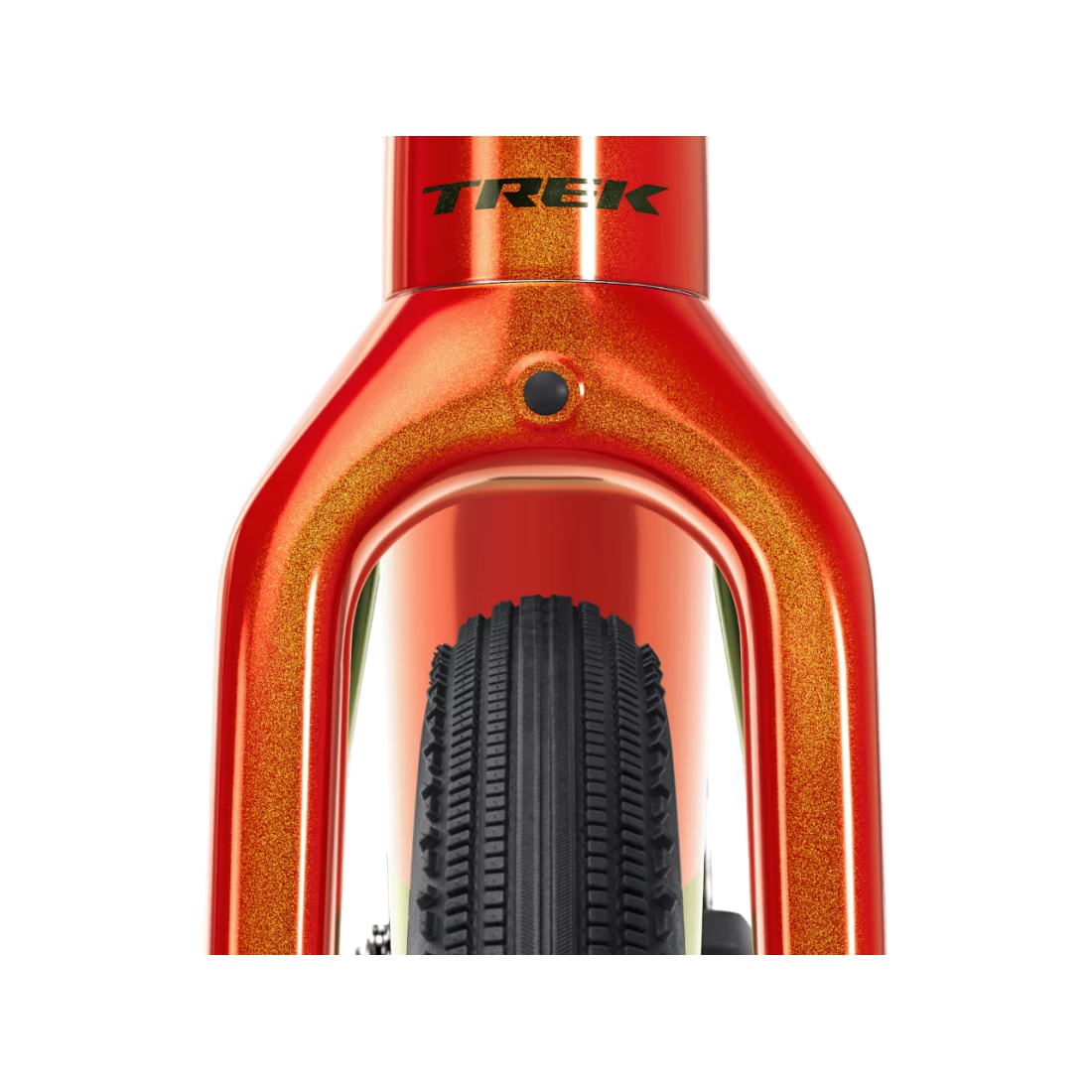

Fork: Full carbon Checkpoint fork, tapered carbon steerer, fender mounts, triple rack mounts, Flat-Mount disc brakes, 12×100 mm grooved thru-axle

Rear Derailleur: SRAM Apex XPLR eTap AXS, 12-speed

Cassette: SRAM XPLR PG-1231, 11–44, 12-speed

Crankset: SRAM Apex 1, 40-tooth, DUB Wide spindle, 170 mm / 175 mm length

Brakes: SRAM Paceline rotors, rounded profile, Centerlock, 160 mm

Wheels: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm internal width, Presta valve

Tires: Bontrager Girona RSL GR, Tubeless Ready, GR puncture protection, aramid bead, 220 TPI, 700×42 mm

Seatpost: Bontrager carbon, 27.2 mm diameter, 8 mm offset, 330 mm length

Saddle: Verse Short Comp, steel rails, 145 mm width

Weight: 9.50 kg
