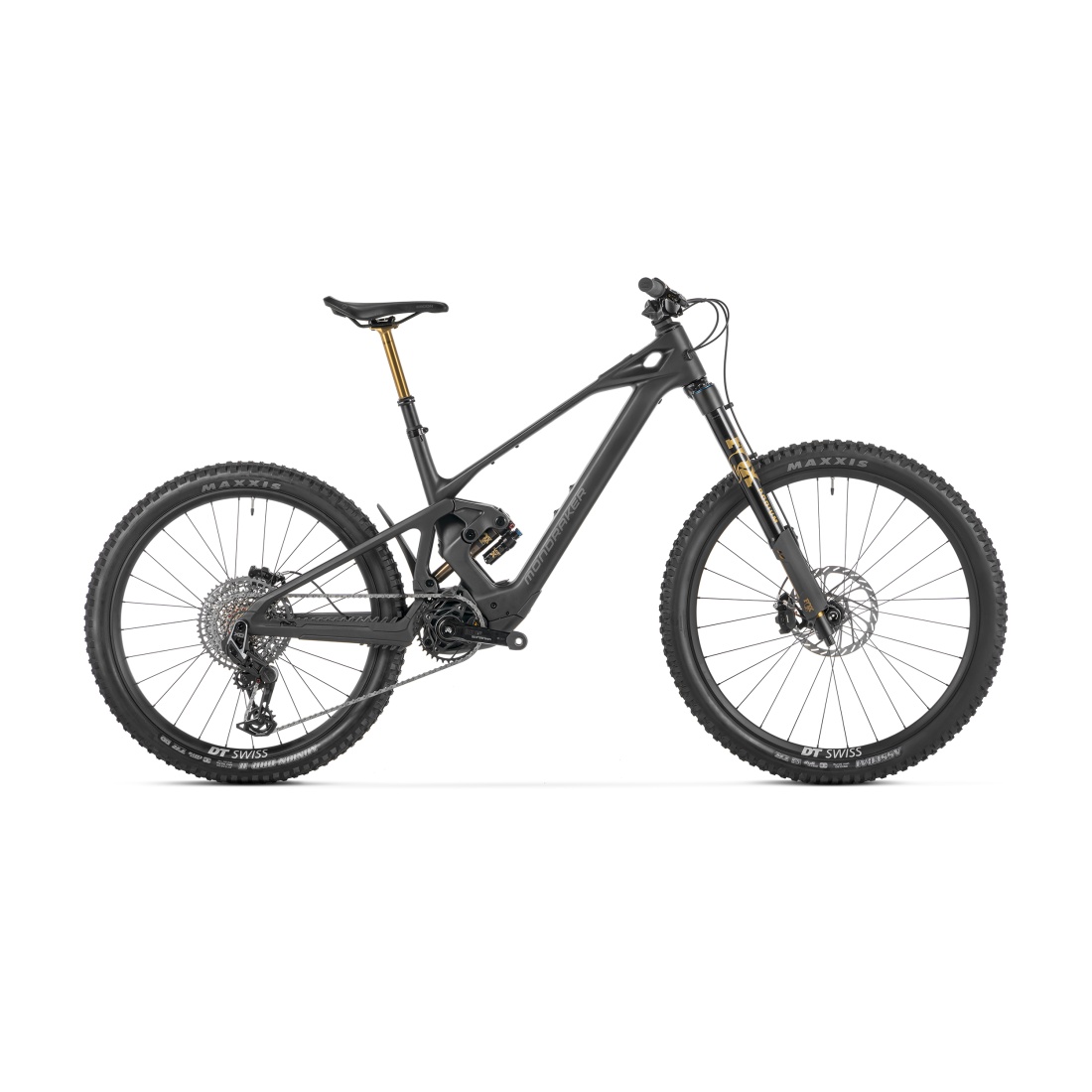

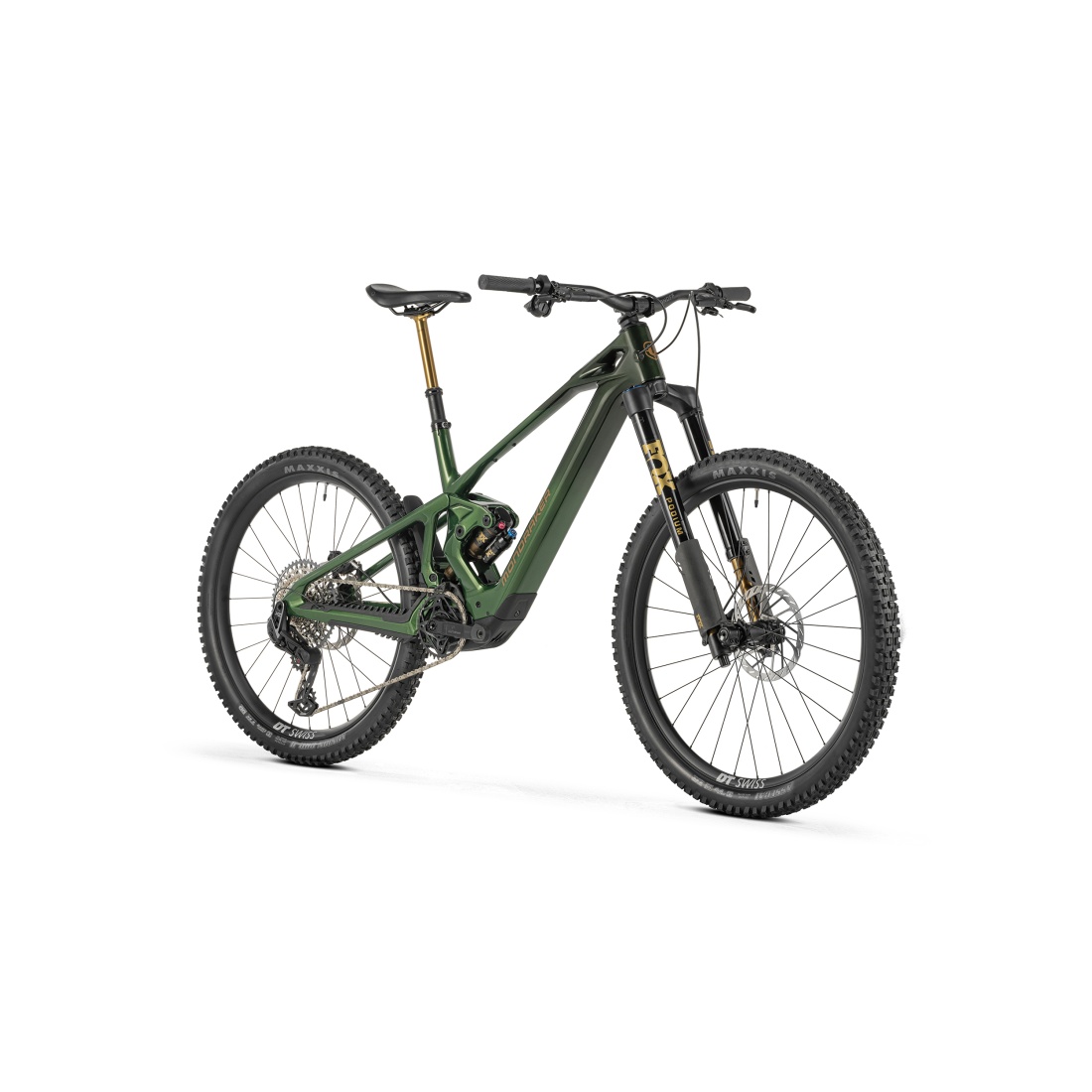

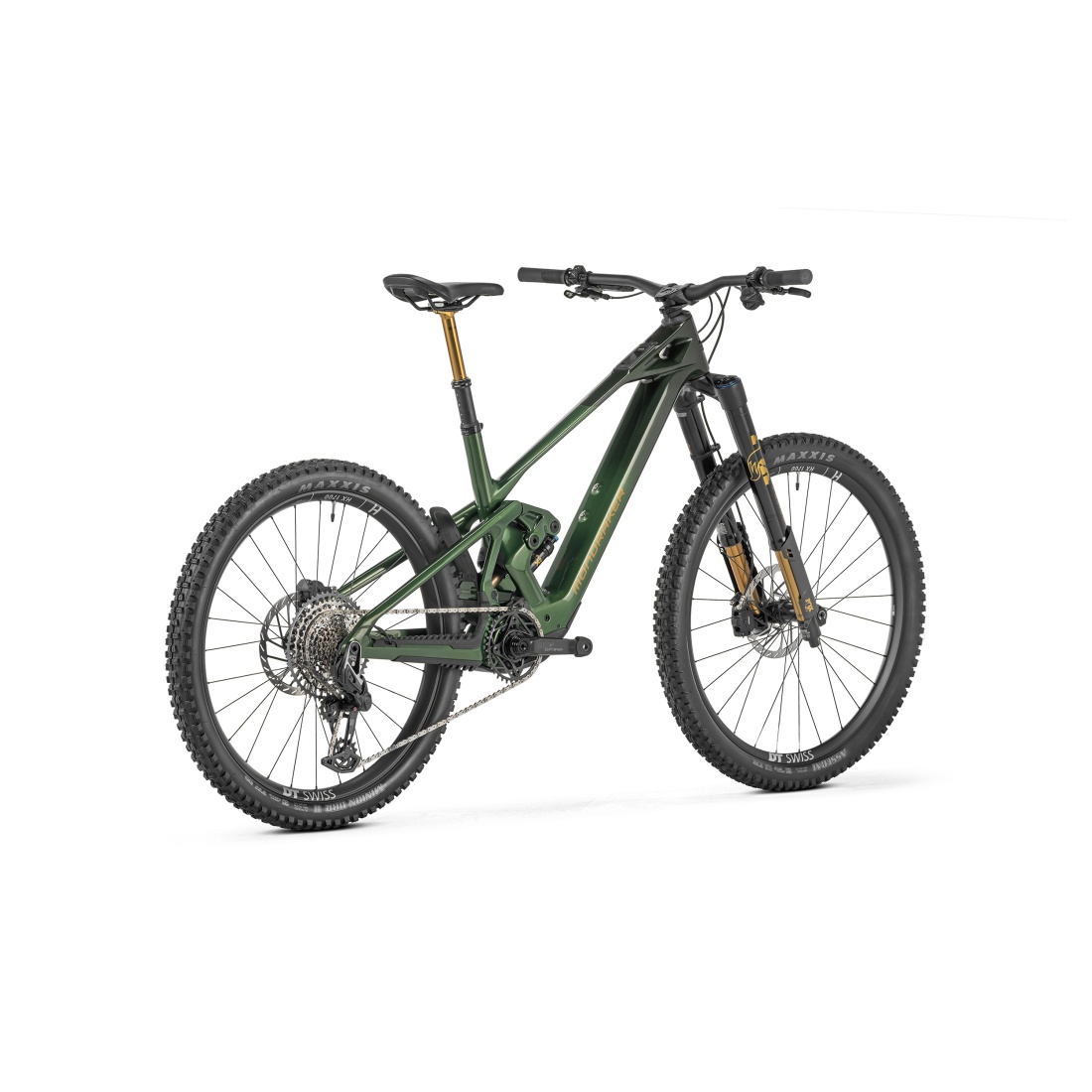

MONDRAKER ZENDIT RR S 2026

Cadre

Zendit Stealth Air full Carbon, Updated Zero Suspension System, 165mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, UDH, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 15mm axles, exclusive plastic motor covers.

Tailles

S: 380mm / M: 410mm / ML: 435mm / L: 460mm / XL: 490mm

Amortisseur arrière

Fox Float X Factory Kashima Evol LV 205x65mm. 2-positions lever compresion (Open/Firm), low-speed compression, low-speed rebound, air preload. Trunnion top mount, 30x8mm bottom bushings.

Réglages l'amortisseur

CS 30 compression, 1,1 Bleed, RL50 rebound, Rezi B40, LML, standard MCU, 0 volume spacers

Fourche

Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm, tapered steerer tube, Boost 20x110mm thru axle, 44mm offset. High and low-speed compression, high and low-speed rebound, air preload.

Jeu de direction

Acros custom ZS56/ZS56, 1-1/8", 1.5" head tube, Internal cable routing, sealing plugs, without blocklock.

Potence

Onoff S9 30mm 0º, Full CNC, 31.8mm barbore.

Cintre

Onoff S9 1.0 Carbon, rise: 25mm, width: 800mm, 8º backsweep, 5º upsweep, 31.8mm barbore. L and XL size: 38mm rise.

Poignées

Onoff Desert Pro, CNC lock-on, 135mm. L and XL: Thicker size.

Tige de selle

Fox Transfer Factory Kashima internal, adjustable travel, diameter 31.6mm, S size: 95mm -120mm, M size: 125mm -150mm, ML size: 155mm -180mm, L size: 185mm -210mm, XL size: 185mm -210mm

Selle

Ergon SM10 E-Mountain Black.

Frein avant

Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Frein arrière

Sram Maven Silver, 18 millimeter 4-piston caliper, HS2 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

Levier de frein

Sram Maven Silver, SwingLink and lever pivot bushings, tools-free reach adjust

Jantes

DT Swiss Hybrid HX 1700 Spline, 30mm internal width, welded aluminum, tubeless ready, 28 spokes

Rayons

DT Swiss Straightpull spokes, DT Hybrid III, black

Moyeu avant

DT Swiss 350, Boost 20x110mm, IS 6 bolts

Moyeu arrière

DT Swiss 350 Classic with 24T Ratchet System, Boost 12x148mm, IS 6 bolts, XD freehub

Pneu avant

Maxxis Assegai 29x2.5WT, tubeless ready, 3C Maxx Grip compound, EXO+ protection, 60TPI, folding bead

Pneu arrière

Maxxis Minion DHR II 27.5x2.5 WT, tubeless ready, 3C MaxxTerra compound, DD protection, 120x2TPI, folding bead

Manivelle

e*thirteen Helix Race e*spec alloy. All sizes: 155mm

Plateaux

Sram Eagle 36T T-Type, 104BCD, steel, CL55

Chaîne

Sram GX Eagle T-Type, 12s Flattop, w/Powerlock

Dérailleur arrière

Sram X0 Eagle AXS T-Type, 12s

Leviers de changement de vitesse

Sram Eagle AXS Pod Controller Rocker Paddle w/discrete clamp, 12s

Cassette

Sram XS 1275, 10-52T, T-Type, 12s

Autres

Sram AXS Extension Cord / Avinox 4A Charger

Poids

22.9 Kg

écran

Avinox DP100 Display / Avinox BC100 Wireless Controller (L&R)

Moteur

Avinox M2S

Batterie

Avinox 800Wh Battery
